Wire rope must be removed from service when inspection reveals specific, measurable conditions such as six or more broken wires in one lay length, a 6 percent reduction in nominal diameter, or visible core protrusion. These thresholds come directly from ASME B30 standards and OSHA regulations, not from subjective judgment calls made in the field. A rope that meets any single one of these criteria is considered unsafe for continued use, regardless of how the rest of the rope looks. Understanding these exact numbers is what separates a defensible maintenance program from one that gets flagged during an OSHA inspection or, worse, causes a load drop.

Key Takeaways

• Six randomly distributed broken wires in one lay length, or three in a single strand, requires removal for most running ropes under ASME B30.2 and B30.17.
• A diameter loss of 6 percent or more below nominal size mandates immediate replacement, since this points to core damage that visual inspection alone cannot catch.
• Core protrusion through the outer strands is an automatic removal condition with no exceptions and no repair option.
• Kinking, birdcaging, crushing, and unlaying are permanent deformations that always require removal, regardless of broken wire counts.
• Heat damage or electric arc strikes demand immediate removal because they alter wire metallurgy in ways that are not visible from the surface.
• Thresholds shift depending on rope construction, with rotation-resistant ropes held to stricter limits than standard running ropes because internal breaks hide from view.

Why Wire Rope Failure Is a Measurable Problem, Not a Guessing Game

Wire rope rarely snaps without warning. It degrades in stages, shedding load capacity gradually as wires break, strands crush, or corrosion eats into the metallic cross-section. The danger for crane operators and safety managers is treating that decline as something you can eyeball rather than measure.

ASME B30 standards (covering cranes, hoists, and rigging equipment) and OSHA regulations such as 29 CFR 1910.179 for overhead cranes and 29 CFR 1926.1413 for construction cranes lay out exact removal criteria. These are not suggestions. Once a rope crosses a documented threshold, it must come out of service before the next lift. Inspectors who cite violations under these sections typically point to a rope that clearly exceeded a broken wire count or diameter loss limit that was never caught during a routine inspection.

Every criterion below maps to something you can measure with a caliper, a flashlight, or a trained eye looking for a specific, well-defined condition. Nothing here relies on “it looks kind of worn.”

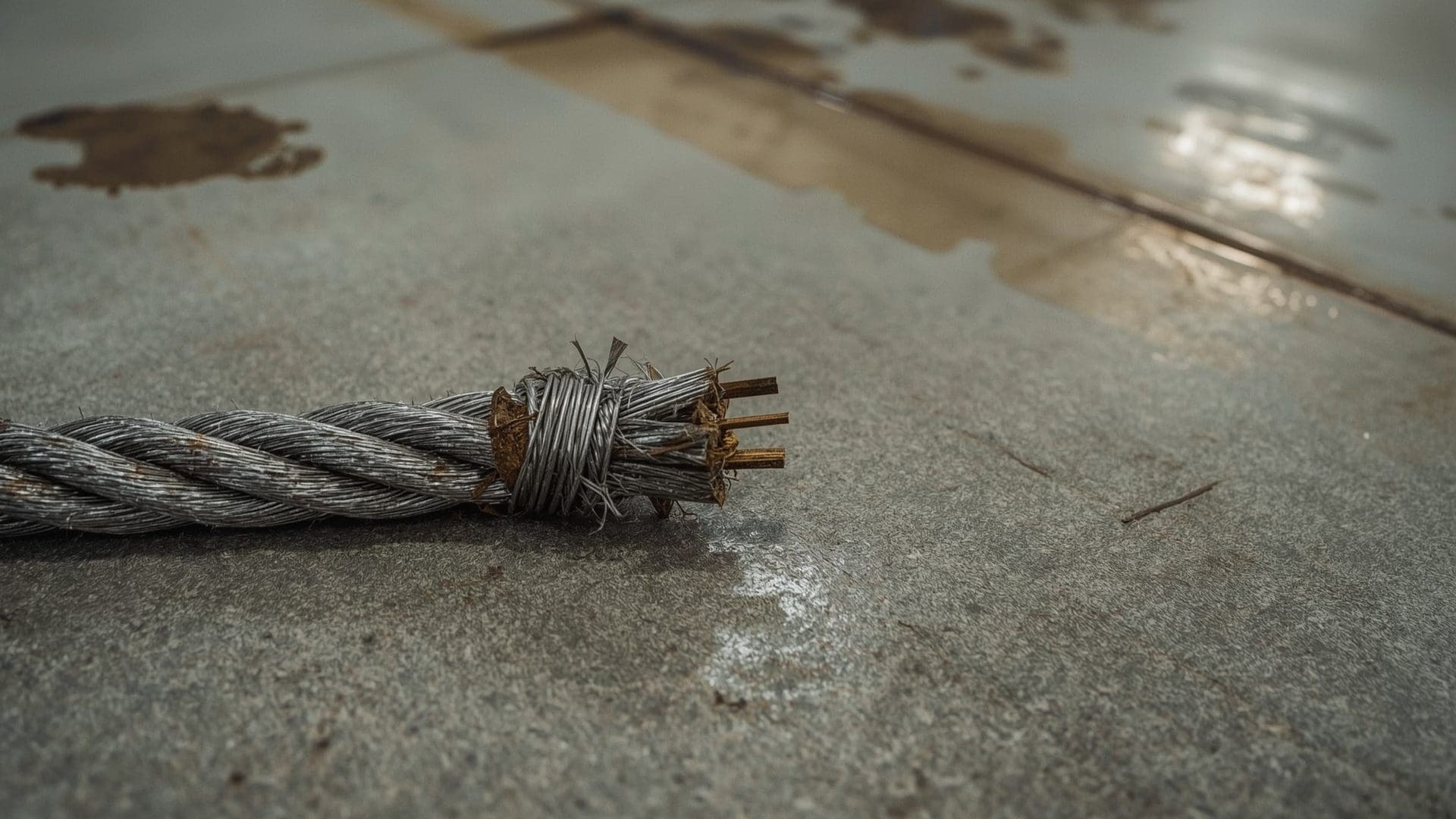

Broken Wire Counts: The Most Cited but Most Misapplied Threshold

ASME B30 standards require removing most running ropes once six or more randomly distributed wires break within one lay length, or three or more break in a single strand within that length. This number gets quoted constantly and miscounted just as often, mostly because people misjudge what a “lay length” actually is.

What Counts as One Lay Length?

Diameter Reduction: The Threshold That Catches Hidden Core Failure

Replace a wire rope once its measured diameter drops 6 percent or more below its nominal, catalog-listed diameter. This single number catches problems that a purely visual inspection will miss almost every time, because the damage happens on the inside of the rope, not the outside.

Why Diameter Loss Signals Internal Collapse

Every wire rope relies on a core, either fiber or an independent wire rope core (IWRC), to hold the outer strands in their round, load-bearing position. When that core degrades or crushes internally, the outer strands settle inward and the rope’s overall diameter shrinks. This reduces the metallic cross-section actually carrying the load, even if every outer wire still looks intact and unbroken from the outside.

This is the criterion that catches rope failures nobody saw coming, because a rope can look fine at a glance and still have lost a meaningful chunk of its rated strength internally.

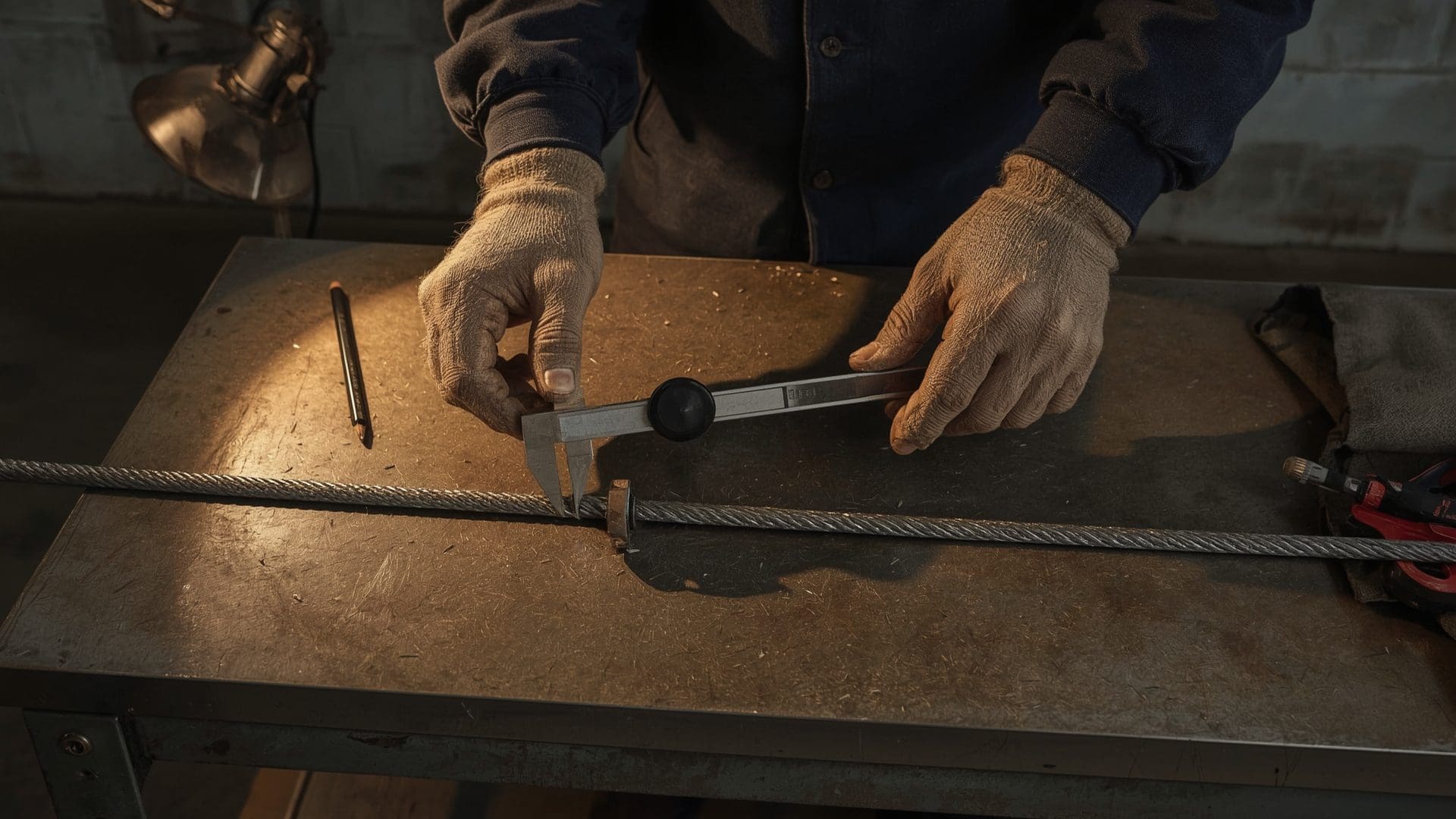

How to Measure Diameter Correctly

Accurate measurement requires a parallel-jaw caliper, never a pointed-tip caliper, positioned across the rope’s widest point over the outer strands. A single reading at one spot is not sufficient. Take measurements at three or four separate points along the rope’s length and compare each to the original nominal diameter listed on the rope’s certification tag or purchase documentation.

An increase in diameter deserves just as much attention as a decrease. A rope measuring noticeably larger than its nominal size may be showing core protrusion or strand unlaying, both of which are serious structural failures covered in the next section.

Deformations That Trigger Immediate Removal Regardless of Wire Count

Kinking, birdcaging, core protrusion, severe crushing, strand unlaying, and dogleg bends all trigger immediate removal the moment they’re spotted. These are permanent structural failures. No straightening, lubricating, or re-tensioning fixes them. Unlike broken wire counts, which need measurement over an interval, deformation rules are binary: if the condition exists, the rope is done.

Core Protrusion

Core protrusion means the rope’s core has pushed out through gaps in the outer strands. The outer strands have already failed to contain it, and the rope’s load-sharing structure is permanently compromised. There’s no percentage threshold here. Any visible protrusion means removal.

Kinking

A kink happens when a rope loops and gets pulled tight under tension, permanently distorting the strand lay. The twisted section never returns to normal. Even one kink, on a rope with perfect wire counts and diameter otherwise, means the rope comes out.

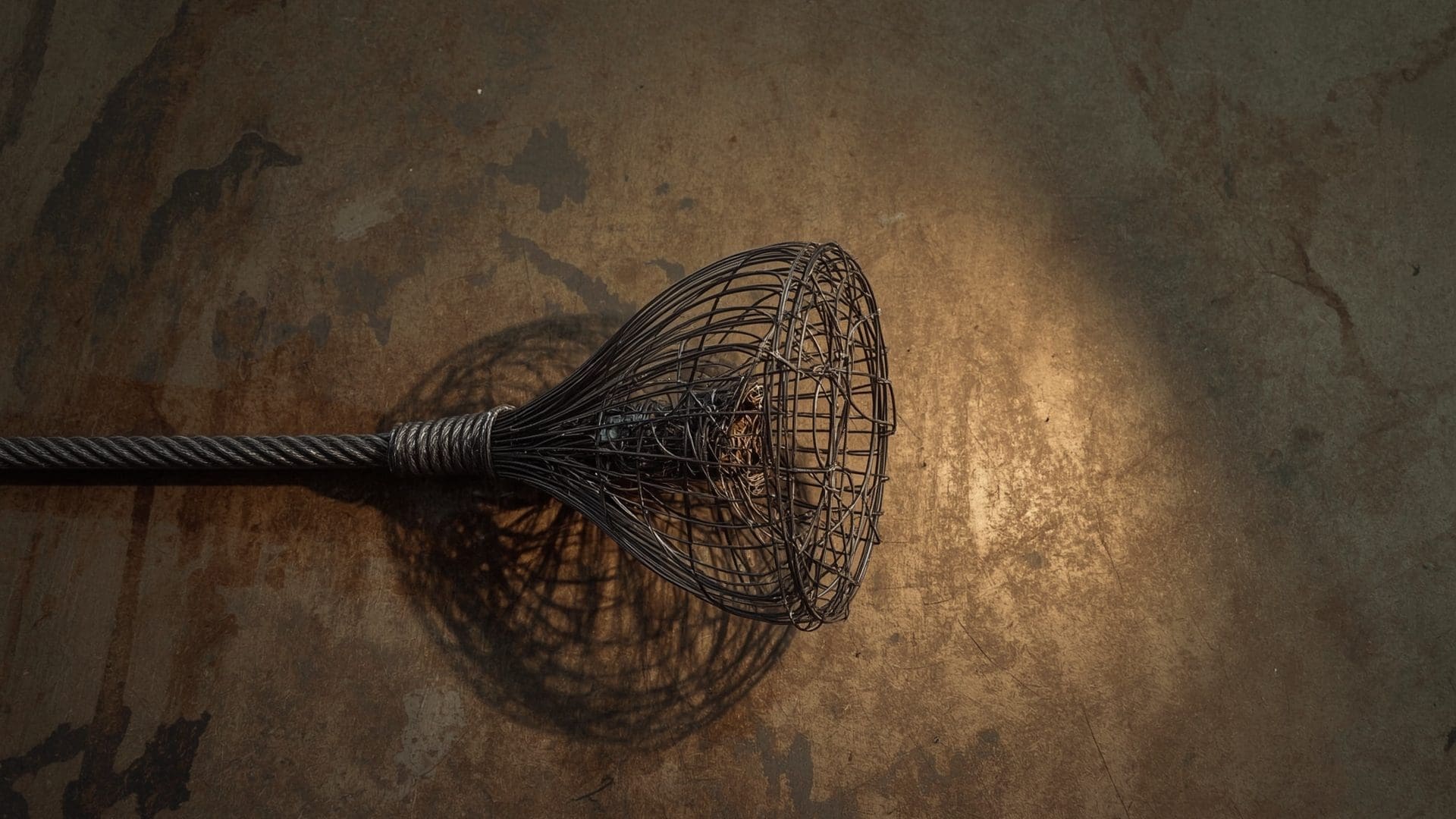

Birdcaging

Birdcaging occurs when outer strands separate from the core and balloon outward, usually from a sudden release of tension after overload or shock loading. The strands lose their helical wrap and splay into a cage shape. This kills the rope’s ability to share load evenly.

Crushing and Flattening

Crushing happens when a rope passes over a sheave or drum under too much pressure, flattening its round shape into an oval. Even light crushing changes how the internal wires bear against each other, speeding up fatigue and hidden wire breaks.

Heat Damage and Electric Arc Strikes

Any sign of heat exposure or an electric arc strike means immediate removal, no exceptions. A single arc strike, even one that looks like a small discolored spot, can change the metallurgy of nearby wires enough to cause brittle fracture under normal load. Friction burns, welding sparks, or contact with hot surfaces carry the same risk. One visible arc strike is functionally the same as a hidden crack running through the core.

Any permanent change to the rope’s round cross-section, from kinking, crushing, or birdcaging, ends its service life immediately. There’s no repair and no credit for “still mostly round.”

Corrosion, Wear, and Other Removal Conditions

Corrosion pitting, valley breaks between strands, and excessive surface wear each carry their own removal standards separate from broken wire counts. Corrosion is particularly dangerous because it often attacks the rope from the inside out, especially on ropes exposed to marine environments, chemical plants, or ropes that were stored wet for extended periods.

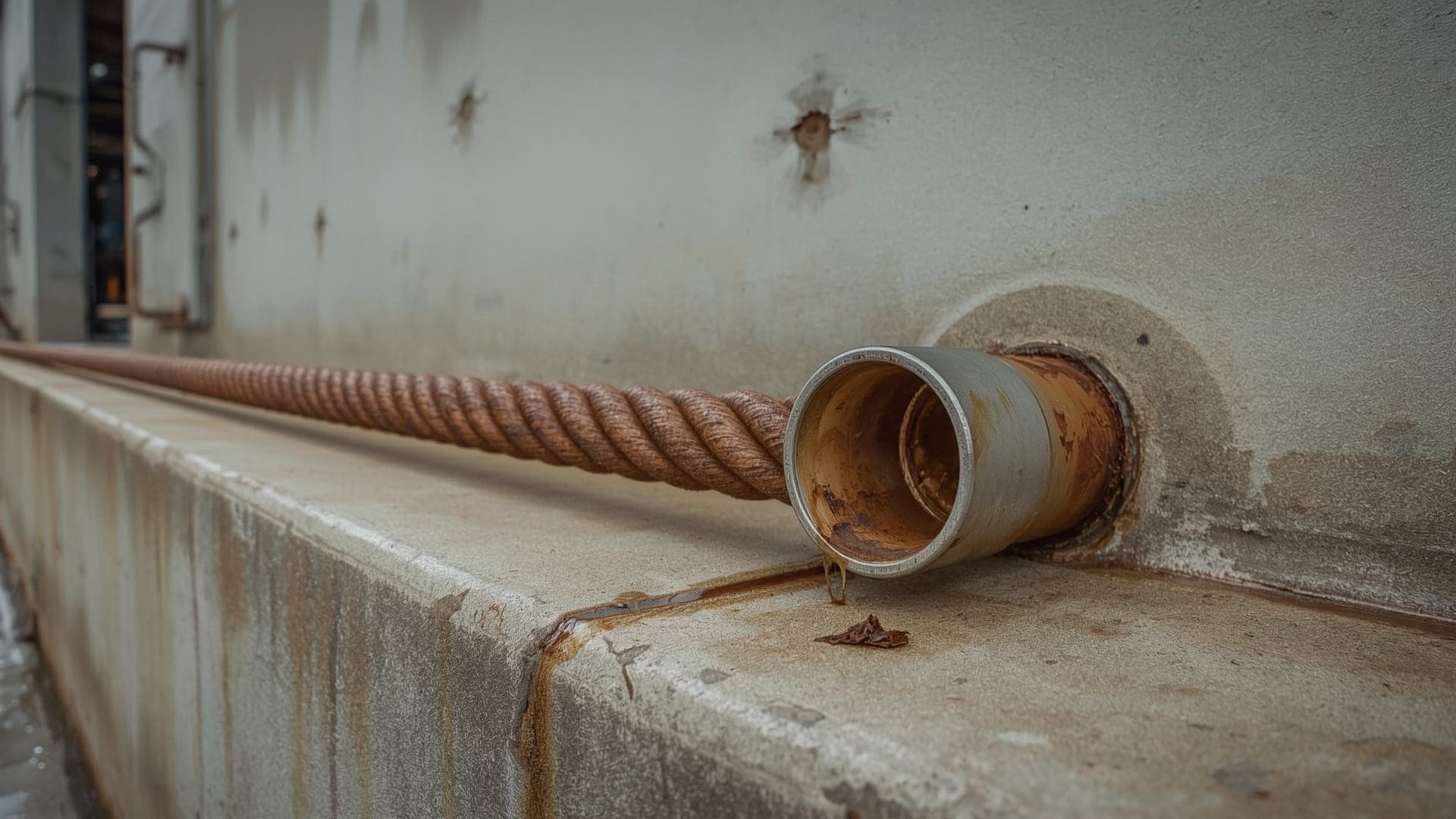

Corrosion Thresholds

Light surface rust that wipes off and leaves the wire surface smooth typically does not require removal on its own. Pitting corrosion, where rust has eaten small craters into individual wire surfaces, is a different matter. Once pitting is visible to the naked eye across multiple wires, or once a rope shows reduced flexibility from internal corrosion between strands, removal is required even if broken wire counts remain below threshold. OSHA’s general duty clause and ASME B30 guidance both treat corrosion severe enough to weaken wire cross-section as equivalent to a broken wire in terms of lost load capacity.

Valley Breaks

A valley break is a wire that fractures at the point where two strands touch, in the “valley” between them rather than on the visible crown of the strand. These breaks are harder to spot during a routine visual inspection since they hide between strands rather than sitting on the rope’s outer surface. Any confirmed valley break should be treated with the same seriousness as a crown break for counting purposes, and a rope with several valley breaks concentrated in one area typically indicates internal fatigue that visual counting alone will understate.

Wear Reducing Outer Wire Diameter

Even without full wire breaks, wear that reduces the diameter of individual outer wires by one-third or more of their original diameter is a documented removal criterion under ASME B30.5. This kind of wear typically develops on ropes running over undersized sheaves or drums with the wrong groove profile, where friction wears down the crown of each outer wire on every pass.

How Rope Type Changes the Applicable Criteria

Running ropes, standing ropes, and rotation-resistant ropes each get their own inspection frequency and their own removal math, because they fail differently and serve different functions.

1. Running ropes (used for hoisting, load lines on cranes) cycle repeatedly over drums and sheaves, so ASME B30.2 and B30.17 apply the 6 broken wires per lay / 3 per strand standard, and inspection frequency is typically daily for visual checks and monthly for documented, detailed inspections.
2. Standing ropes (pendants, guy wires, boom support lines) hold a static or semi-static load and rarely cycle, so ASME B30.5 drops the threshold to 2 broken wires per lay, since these ropes get far less frequent hands-on inspection in practice.
3. Rotation-resistant ropes (multi-layer construction used on tower cranes and some mobile crane main hoists) get the strictest limit of all, just 2 random breaks or 1 per strand, because their layered design hides internal damage from view until the rope is well past safe service life.
4. Boom hoist ropes follow the same 6/3 standard as running ropes under ASME B30.5, but inspectors typically pay closer attention to termination points on these ropes since boom angle changes create repeated flex cycles at the socket.

OSHA 1926.1413, which governs cranes and derricks used in construction, references these same ASME-derived criteria and requires a documented inspection before each shift along with a more thorough monthly inspection recorded in writing. Employers who cannot produce those records during an audit face the same citation risk as employers running rope that has already crossed a measurable threshold.

Documentation Requirements That Support Every Removal Decision

Every removal decision needs a paper trail that records the specific measurement or observed condition that triggered it, not just a note reading “rope replaced.” OSHA and ASME both expect inspection records to specify which criterion applied: a diameter reading in thousandths of an inch, a broken wire count tied to a specific lay length location, or a described deformation such as birdcaging near a particular foot marker on the rope.

A well-documented inspection log typically includes the date, the inspector’s name and qualification, the specific measurement tool used, the reading obtained, and the ASME or OSHA section cited as the basis for removal. Facilities that keep this level of detail rarely face problems during an OSHA inspection, since the paperwork itself demonstrates a functioning, criteria-based maintenance program rather than a reactive one.

Conclusion

Wire rope replacement decisions do not require guesswork when the criteria are this specific. Six broken wires in a lay length, a 6 percent diameter loss, visible core protrusion, or any confirmed heat damage each stand on their own as sufficient grounds for removal, and no single criterion needs to be combined with another to justify pulling a rope from service. Training inspectors to measure correctly, over the right interval, with the right tool, closes the gap between a rope that looks fine and a rope that actually is fine. Building these measurable thresholds into a documented, repeatable inspection routine is what keeps crane and hoist operations compliant with ASME B30 standards and OSHA regulations, and more importantly, keeps loads from dropping.

Frequently Asked Questions

How often should wire rope be inspected for these removal criteria?

Running ropes need a visual check before each shift and a documented, detailed inspection at least monthly. Standing ropes, such as pendants and guy wires, typically get a thorough inspection quarterly or per the manufacturer’s schedule, though OSHA 1926.1413 requires more frequent checks on ropes in heavy cyclic use.

Can a wire rope be repaired instead of replaced once it hits a removal threshold?

No, none of the criteria covered here allow for field repair. Broken wire counts, diameter loss, deformations, and heat damage are all permanent conditions under ASME B30 standards, and the only compliant response is full rope replacement.

Does a rope that passes the broken wire count still need removal for other reasons?

Yes, broken wire count is only one of several independent criteria. A rope with zero broken wires can still require removal for diameter loss, corrosion, kinking, or heat damage, since each threshold applies on its own regardless of the others.

Who is qualified to make a wire rope removal decision on a job site?

A qualified person, as defined under OSHA 1926.1401, with documented training in wire rope inspection and access to the correct measurement tools. This typically means a certified crane inspector or a rigger with formal rigging-level training, not just an operator doing a quick visual glance.

What happens if a facility continues using rope that has crossed a removal threshold?

Continued use exposes the facility to OSHA citations, increased liability in the event of a failure, and a direct risk of load drop or rope snap under working load. OSHA citations under 1926.1413 or 1910.179 for wire rope violations frequently accompany serious injury investigations, since the removal criteria are well documented and difficult to argue against after the fact.
