A crane hook is the last mechanical link between your lifting equipment and the load. If it fails, everything below it falls. That makes hook inspection one of the most safety-critical tasks in any rigging operation. Yet it’s also one of the most underestimated.

This guide covers every inspection point inspectors and rigging personnel need to check: throat opening measurement, twist detection, latch condition, surface crack methods, and exactly when ASME B30 standards require you to remove a hook from service.

Key Takeaways

• Throat opening is the primary deformation indicator — a 15% increase from the original dimension is the ASME B30.10 removal threshold for most hooks.
• Twist is measured in degrees — any twist exceeding 10 degrees from the plane of the hook’s unbent shank is a removal criterion under ASME B30.10.
• Latches must seat fully and spring back — a damaged or non-functioning latch is an immediate removal condition, not a “monitor and continue” situation.
• Visual inspection is not enough for cracks — dye penetrant or magnetic particle testing is required to detect surface cracks that the eye cannot catch.
• Frequent inspections differ from periodic inspections — frequency and inspection depth depend on service class, usage hours, and the type of crane.
• Document every measurement — without baseline data, you cannot detect gradual deformation trends before they reach removal thresholds.

What Are the Required Inspection Points for a Crane Hook?

Quick Answer: ASME B30.10 requires inspectors to check throat opening, twist, cracks, surface wear, hook shank threads, latch function, and the hook’s attachment point. Each point has a defined removal criterion tied to a measurable value or condition.

Crane hooks do not fail all at once. They degrade gradually under repeated load cycles, shock loads, and environmental exposure. Each inspection point targets a specific failure mode.

Here is a complete list of required inspection points for a crane hook:

• Throat opening (spread): the gap between the hook tip and the body, measured across the load-bearing throat
• Twist: rotation of the hook shank or body out of its original plane
• Surface cracks and gouges: visible or subsurface discontinuities in the hook metal
• Wear at the saddle (load point): material loss where the sling, shackle, or load contacts the hook
• Latch condition: the spring-loaded gate that prevents accidental load release
• Shank threads and nut condition: integrity of the threaded section where the hook attaches to the block
• Hook swivel or bail attachment: bearing function and freedom of rotation on swivel-type hooks
• Corrosion and pitting: surface degradation that can mask or initiate cracks

How Often Must You Inspect a Crane Hook?

ASME B30.10 establishes two inspection frequencies: frequent and periodic. Frequent inspections are visual checks performed before each shift or at least daily during active use. Periodic inspections are thorough documented examinations conducted at intervals based on service class.

Service class determines how often a periodic inspection is required:

• Normal service: at least annually
• Heavy service: semi-annually to quarterly
• Severe service: monthly or more frequently based on conditions

Any hook that has been subjected to an overload, shock load, or unusual event should receive an unscheduled inspection before returning to service.

How Do You Measure Throat Opening on a Crane Hook?

Quick Answer: Use a caliper or hook gauge to measure the straight-line distance across the throat opening. Compare the reading to the hook’s original manufacturer dimension. A 15% increase from that baseline is the ASME B30.10 removal threshold.

Throat opening measurement is the single most important dimensional check in crane hook inspection. The throat is the curved gap between the tip and the body of the hook where loads are applied. When a hook is overloaded or shock-loaded, the throat spreads open.

Step-by-Step: Measuring Throat Opening

1. Obtain the original throat dimension from the manufacturer’s documentation, the hook’s nameplate, or the original inspection record.
2. Clean the hook to remove grease, paint, or debris that could affect the measurement.
3. Place a caliper or hook gauge across the narrowest point of the throat opening, perpendicular to the hook’s centerline.
4. Record the measurement to the nearest 0.01 inch or 0.1 mm, depending on your gauge.
5. Calculate percent increase: ((Measured value − Original value) ÷ Original value) × 100.
6. Remove from service if the increase equals or exceeds 15%.

Some hook gauges are pre-marked with go/no-go ranges for specific hook sizes. These work for frequent inspections but should not replace caliper measurements during periodic inspections.

What if You Don’t Have the Original Dimension?

If original manufacturer data is unavailable, you have two options. First, contact the hook manufacturer with the model number and hook size to get the baseline throat dimension. Second, compare the hook to an identical unworn hook of the same model and capacity.

Using an estimated or assumed baseline is not acceptable practice. Without a verified original dimension, you cannot accurately calculate a 15% threshold. In that case, the hook should be taken out of service until proper documentation is obtained.

How Do You Detect Twist in a Crane Hook?

Quick Answer: Look down the hook shank and compare the plane of the hook body to the plane of the shank. Any visible rotation indicates twist. ASME B30.10 requires removal when twist exceeds 10 degrees from the original plane.

Hook twist occurs when a load is applied at an angle to the hook’s designed load plane. It can also result from side-loading, which forces the hook to rotate under stress. Twisted hooks are dangerous because the load path through the metal changes, concentrating stress in areas not designed for it.

How to Measure Twist Accurately

Visual estimation of twist is acceptable for frequent inspections. For periodic inspections, a more precise method is required:

1. Suspend the hook freely from the shank or mounting point.
2. Hold a straightedge or angle finder against the plane of the hook body.
3. Compare that plane to the reference plane of the shank using a protractor or digital angle gauge.
4. Record the angle in degrees.
5. Remove from service if twist equals or exceeds 10 degrees.

Even hooks below the 10-degree threshold should be documented and monitored. Progressive twist indicates repeated side-loading, which points to a rigging practice problem, not just a hardware problem.

What Is the Correct Way to Inspect a Hook Latch?

Quick Answer: Open the latch manually and release it. It must snap back to the closed position fully and seat against the hook tip without a gap. A latch that sticks, stays open, or has visible damage must be removed from service immediately.

The latch (also called a safety latch or keeper) prevents the sling or rigging hardware from slipping out of the hook throat during slack conditions or incidental contact. It is a passive safety device, meaning it only works if it is in good condition.

Latch Inspection Checklist

• Spring function: the latch must return to closed position without manual assistance
• Full seating: the latch tip must contact the hook tip with no visible gap
No deformation: the latch body must not be bent, cracked, or corroded to the point of weakness
• No binding: the latch pivot pin must move freely without sticking
• No load damage: a latch that has been struck by a load or caught between hook and rigging must be replaced, even if it appears functional

When Are Hooks Permitted to Be Used Without Latches?

ASME B30.10 allows latch-free hooks in specific circumstances where the latch would interfere with the rigging method or where the hook geometry makes load release impossible. This exception requires written engineering authorization and should be documented in the rigging plan.

In practice, most general-purpose lifting hooks should always have a functioning latch installed. If an operation requires routine latch removal, that is a signal to evaluate the rigging method.

How Do You Inspect a Crane Hook for Cracks?

Quick Answer: Visual inspection alone cannot reliably detect surface cracks on crane hooks. Dye penetrant testing (PT) and magnetic particle testing (MT) are the two standard non-destructive methods. Either method can reveal cracks invisible to the naked eye.

Cracks in crane hooks typically start at stress concentration points: the inner radius of the throat, the shank threads, and areas with surface gouges or corrosion pitting. These are also the exact areas most likely to be dirty or painted, which is why cleaning the hook before inspection is not optional.

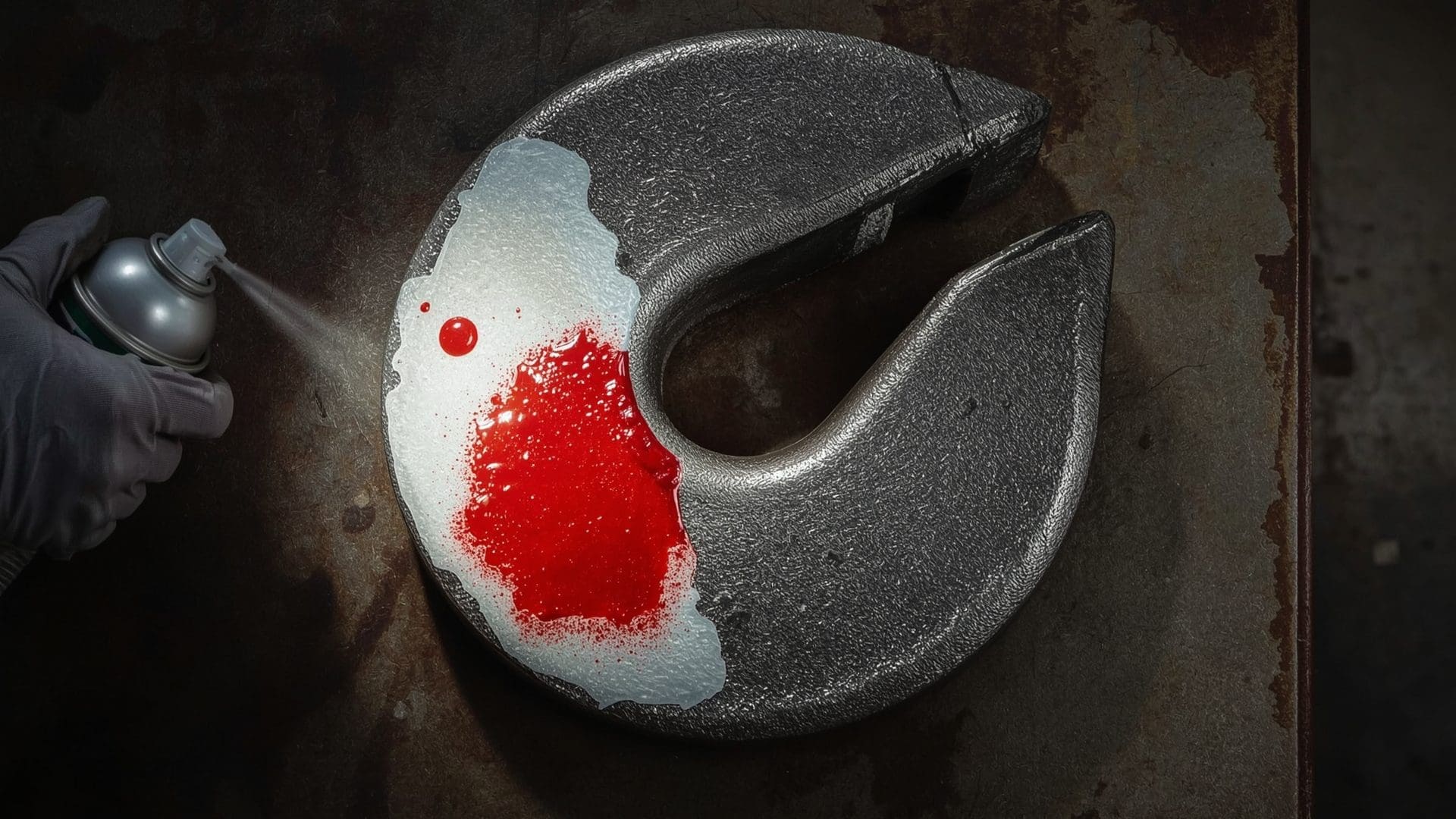

Dye Penetrant Testing (PT) for Hook Cracks

Dye penetrant testing works on any non-porous surface material. It requires no special equipment beyond the penetrant kit itself. Here is the basic process:

1. Clean the hook surface thoroughly with a solvent cleaner.
2. Apply the penetrant dye and allow dwell time (typically 10 to 30 minutes, per the product instructions).
3. Remove excess penetrant from the surface.
4. Apply the developer, which draws penetrant out of any cracks and makes them visible as colored indications.
5. Inspect under adequate lighting. Red indications on a white background are cracks or porosity.

PT works on non-magnetic materials as well as steel, making it useful for stainless steel hooks or specialty alloys.

Magnetic Particle Testing (MT) for Hook Cracks

Magnetic particle testing is faster than PT for steel hooks and can reveal both surface and near-surface cracks. The hook is magnetized, and iron particles are applied. Cracks disrupt the magnetic field and cause particle accumulation at the defect location.

MT requires either a yoke or coil to generate the magnetic field, plus iron particle solution (wet method) or dry powder. The inspector must position the magnetic field at multiple angles to ensure all crack orientations are detectable.

Which NDT Method Should You Use?

For standard steel crane hooks, magnetic particle testing is the preferred method. It is faster, more sensitive to near-surface defects, and does not require as long a dwell time as PT. Dye penetrant is the appropriate choice for austenitic stainless steel hooks or when MT equipment is unavailable.

What Are the ASME B30.10 Removal Criteria for Crane Hooks?

Quick Answer: ASME B30.10 requires removing a crane hook from service when throat opening increases 15% or more, twist exceeds 10 degrees, visible cracks are found, the latch is non-functional, or wear at the saddle reduces the cross-section by 10% or more.

ASME B30.10 is the governing standard for hooks used in overhead and mobile crane applications. It sets minimum removal criteria — conditions under which a hook must stop being used, regardless of how much life it appears to have remaining.

ASME B30.10 Hook Removal Criteria Reference Table

These are minimum criteria. A hook manufacturer may specify tighter removal thresholds for their specific product. Always check manufacturer documentation alongside ASME B30.10.

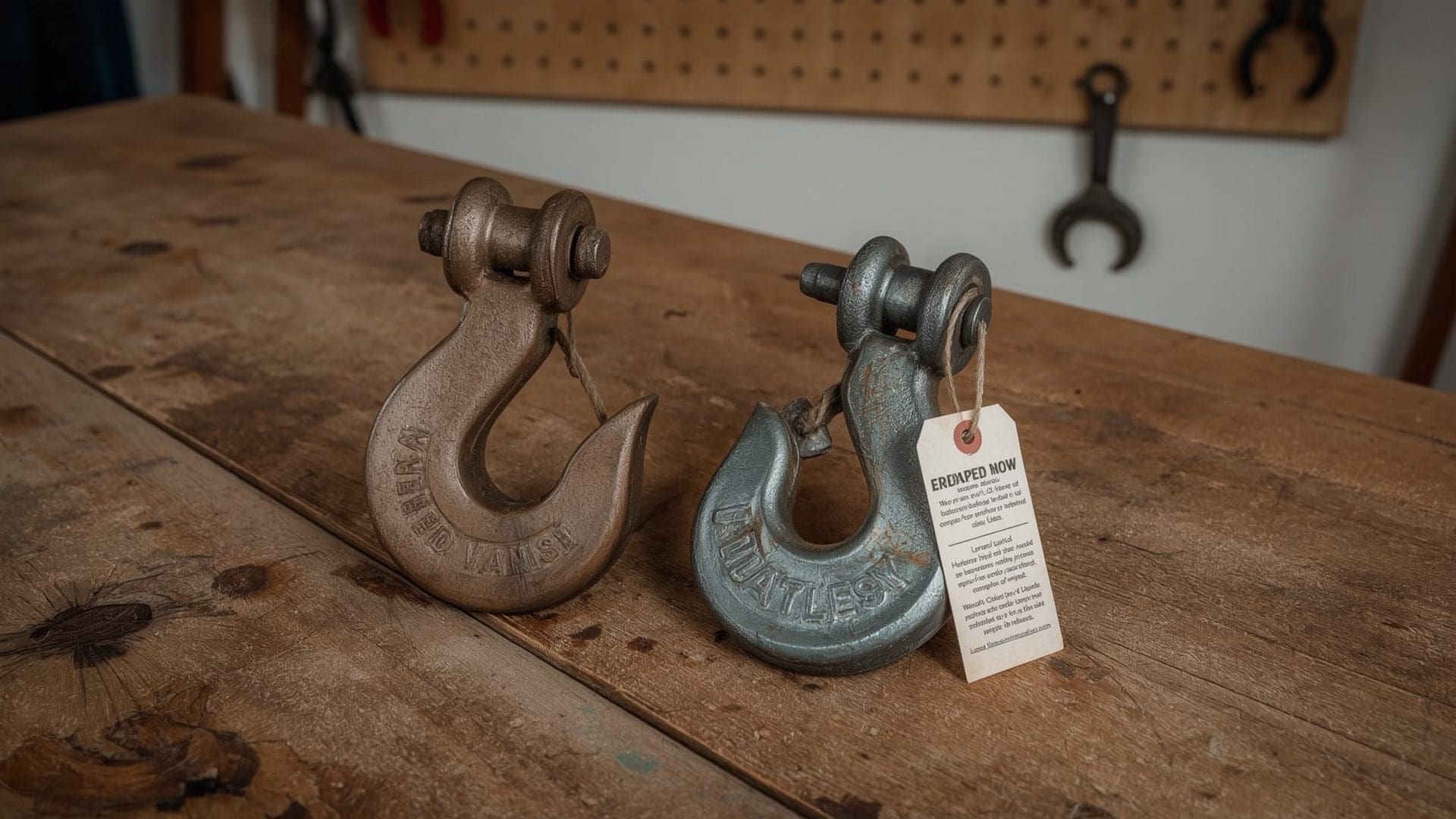

Can a Hook Be Repaired Instead of Replaced?

In almost all cases, the answer is no. ASME B30.10 prohibits welding, heating, or mechanical re-forming of crane hooks as a repair method. Hooks are manufactured from specific alloy steels with controlled heat treatment processes. Any field repair alters the metallurgical properties and voids the load rating.

If a hook fails inspection, it must be removed from service and replaced with a new hook of equivalent or greater capacity from an approved manufacturer.

What Types of Wear Occur at the Hook Saddle?

Quick Answer: The saddle is the curved inner surface where loads contact the hook. Saddle wear appears as a groove or flat spot caused by repeated sling contact. When saddle wear reduces the cross-sectional area by 10%, the hook must be removed from service.

The saddle area concentrates the most mechanical stress during normal lifting. Every lift leaves a small amount of material wear. Over time, this creates a visible groove. Measuring saddle wear requires comparing the current cross-section at the wear point to the original cross-section from manufacturer data.

Hook Component Wear and Damage Reference

What Hook Types Require Different Inspection Approaches?

Quick Answer: Single-hook, double-hook, swivel hook, and shank-type hooks each have design-specific inspection points. Swivel hooks require rotation checks. Double hooks need symmetrical wear evaluation on both bodies. All types share the same ASME B30.10 removal thresholds.

Not all crane hooks are the same shape or configuration. The inspection principles are consistent, but each hook type adds specific checks based on its mechanical design.

Hook Type Inspection Requirements

How Should Crane Hook Inspection Results Be Documented?

Quick Answer: Record the hook serial number or ID, date, inspector name, each inspection point result, actual measurements, and pass/fail determination. Retain records for the life of the hook. ASME B30.2 and B30.10 require written inspection records for periodic inspections.

Documentation transforms inspection from a one-time activity into a trend analysis tool. When you record throat dimensions at each periodic inspection, you can detect gradual spread before it hits the 15% threshold. That is the difference between a planned replacement and an emergency removal from service during an active lift.

Minimum Documentation Fields for a Hook Inspection Record

• Hook identifier: serial number, equipment tag, or block number
• Crane or hoist association: crane ID, bay, or asset number
• Inspection date and type: frequent (pre-shift) or periodic
• Inspector name and qualification: designated or qualified person, per ASME definitions
• Throat opening measurement: recorded in millimeters or inches, compared to original
• Twist measurement: degrees recorded or “within limits” noted
• Saddle wear measurement: actual cross-section at wear point
• Latch condition: pass or fail with description of any defect
• NDT results: method used, findings, and interpretation
• Overall determination: return to service, monitor, or remove from service
• Next inspection due date

What Are Common Mistakes Inspectors Make During Hook Inspection?

Quick Answer: The most common mistakes are skipping baseline measurements, using visual inspection for cracks instead of NDT, failing to check latch spring function, and not documenting results. These errors allow degraded hooks to stay in service past safe limits.

Inspector Error Patterns and Their Consequences

What Is the Difference Between a Frequent and Periodic Hook Inspection?

Quick Answer: Frequent inspections are visual checks done before each use or daily. Periodic inspections are thorough documented examinations with measurements and NDT, conducted monthly to annually based on service class. Both are required by ASME B30.10 — one does not replace the other.

The two inspection types serve different functions. Frequent inspections catch obvious problems: a bent latch, fresh gouges, visible deformation from yesterday’s lift. Periodic inspections catch what accumulates invisibly: gradual throat spread, hairline fatigue cracks, progressive corrosion.

A crane that operates daily in heavy service might have a frequent inspection every shift and a periodic inspection every 90 days. A crane used monthly in light service might have frequent inspections before each use and an annual periodic inspection. The schedule must match actual operating conditions, not just a calendar default.

Frequently Asked Questions

What is the ASME standard that governs crane hook inspection?

ASME B30.10 is the primary standard covering hooks used with hoists, chain blocks, and overhead cranes. It defines inspection requirements, removal criteria, and marking requirements for hooks. ASME B30.2 covers overhead and gantry cranes more broadly and references B30.10 for hook-specific rules.

Can you use a crane hook if the latch is missing but the load cannot fall out?

Only with written engineering authorization. ASME B30.10 does allow latch-free hooks in specific rigging configurations where load release is geometrically impossible. However, this must be documented in a written rigging procedure approved by a qualified person — it is not an informal field decision.

How do you tell if a crane hook has been overloaded?

The most reliable indicators are throat opening beyond the baseline, visible twist, or permanent deformation in any part of the hook body. A hook that has been overloaded may show no visible change, which is why NDT crack inspection should follow any known overload event before the hook returns to service.

What tools do inspectors need to carry for hook inspection?

At minimum: a caliper or hook gauge matched to the hook size, a straightedge or digital angle gauge for twist measurement, a wire brush for surface cleaning, and adequate lighting. For periodic inspections, dye penetrant or magnetic particle testing supplies are also required to inspect for cracks.

Does corrosion on a crane hook automatically require removal?

Not automatically. Light surface rust that does not reduce cross-sectional area or mask cracks is not an automatic removal trigger. However, pitting corrosion that reduces the hook’s cross-section or creates stress risers where cracks can initiate does meet removal criteria. Always clean corroded areas before evaluating depth.

Who is qualified to perform a periodic crane hook inspection?

ASME B30.10 requires periodic inspections to be performed by a designated person — someone selected or assigned by the employer based on their competence and knowledge of the standard. For complex NDT evaluations, a certified inspector with Level II qualification in the specific test method (PT or MT) is appropriate.
