Knuckle boom crane safety is a topic every operator, inspector, and site supervisor needs to understand before putting this machine to work. A knuckle boom crane, also called an articulated crane, uses a hinged joint in the boom that folds like a finger knuckle. That folding design gives it exceptional reach and flexibility in tight spaces, but it also creates hazards you won’t find on conventional straight-boom cranes.

Knuckle boom operations demand a sharp eye for mechanical wear, hydraulic integrity, and load dynamics that shift as the boom articulates through its range of motion. If your team works with these machines regularly, understanding the specific risks and inspection steps is not optional. It is a core safety requirement.

Ready to learn more? Explore our Articulating Boom Crane Certification program to get your operators and inspectors fully qualified on this equipment type.

What Makes a Knuckle Boom Crane Different from Other Cranes

A standard hydraulic crane lifts along a single straight boom path. A knuckle boom crane adds one or more articulated joints, allowing the boom sections to fold inward or extend outward independently. This design lets it work in confined areas, reach over obstacles, and self-load onto transport trucks without ground-level rigging.

The articulation creates a fundamentally different load path compared to a lattice or telescoping boom. Forces travel through multiple pivot points rather than along one straight axis. That changes how stress concentrates, how hydraulic circuits must be sized, and how the crane responds to off-center loads. Operators coming from conventional crane backgrounds need specific training on these differences before they touch the controls.

Core Safety Hazards in Knuckle Boom Operations

Articulated crane safety starts with knowing where the real danger points are. These machines have a distinct risk profile that separates them from other crane types.

Hydraulic System Failures

The knuckle boom relies entirely on hydraulic cylinders to hold position and generate lift force. A seal failure or hose burst under load can cause a sudden, uncontrolled drop or boom collapse. Unlike mechanical locking systems on some crane types, hydraulic systems depend on continuous pressure. Regular hose inspection and cylinder seal checks are non-negotiable before every shift.

Articulation Joint Wear and Fatigue

The pivot pins and bushings at the knuckle joint experience high cyclic stress with every lift. Wear at these points is often invisible until a crack propagates far enough to cause failure. Inspectors must measure pin-to-bushing clearances and look for surface cracks using visual and non-destructive testing methods on a scheduled basis.

Load Swing and Instability During Articulation

As the inner and outer boom sections change angle, the load’s center of gravity shifts. This creates a pendulum effect that can generate side-loading forces the crane was not designed to absorb. Operators must move through articulation angles slowly and deliberately, especially at high capacity percentages.

Pinch Points and Crush Hazards

The folding action of the boom creates severe pinch zones between the inner and outer boom sections. Ground crews and riggers must stay clear of these zones during any boom movement. A spotting person dedicated to watching for personnel near pinch points is a practical control measure on busy sites.

Stability and Outrigger Placement

Knuckle boom cranes are often truck-mounted, making outrigger deployment critical. An improperly extended outrigger or soft ground beneath an outrigger pad can cause catastrophic tipping. Always verify outrigger extension, pad size, and ground bearing capacity before the first lift.

Pre-Operation Inspection Requirements for Knuckle Boom Cranes

A daily inspection is your first line of defense. OSHA 1926 Subpart CC and ASME B30.22 set the minimum standards for articulating boom crane inspections. Your pre-operation checklist should cover every system that directly affects load control and structural integrity.

Periodic and Annual Inspection Standards for Articulated Cranes

Daily checks address obvious defects, but periodic inspections go deeper. ASME B30.22 requires a thorough periodic inspection at intervals based on severity of service, from monthly to annually depending on usage.

Non-Destructive Testing at the Knuckle Joint

The knuckle joint is the highest-stress point on the crane. Magnetic particle testing and dye penetrant testing can reveal surface cracks that visual inspection misses entirely. Any qualified inspector working on these machines should include NDT methods in the periodic inspection scope, especially on heavily used equipment.

Hydraulic Cylinder Drift Testing

A cylinder drift test checks whether a hydraulic cylinder holds its position when the pump is off and no control input is applied. Excessive drift under load indicates worn seals or internal bypass. This is a critical periodic check because a cylinder that drifts in the field will drop a load without warning.

Load Chart Verification

Load charts for knuckle boom cranes are configuration-specific. Capacity changes with outrigger setting, boom angle, articulation angle, and working radius. Verify that the chart posted on the crane matches the actual machine configuration and that no unauthorized modifications have been made since the last inspection.

Safe Operating Practices During Knuckle Boom Operations

Good inspection practices protect against mechanical failure. Good operating practices protect against operator-induced accidents. Both are required for a complete knuckle boom crane safety program.

• Read the load chart before every lift. Capacity varies significantly across different boom and articulation angle combinations.
• Extend all outriggers fully before lifting. Partial outrigger extension dramatically reduces rated capacity and stability.
• Move boom sections slowly through articulation angles. Fast movement amplifies load swing and increases stress on the pivot joints.
• Establish a clear exclusion zone. Keep ground personnel out of the swing radius and away from pinch zones at all times.
• Never exceed the load chart capacity. Articulated crane safety margins are calculated for specific configurations only.

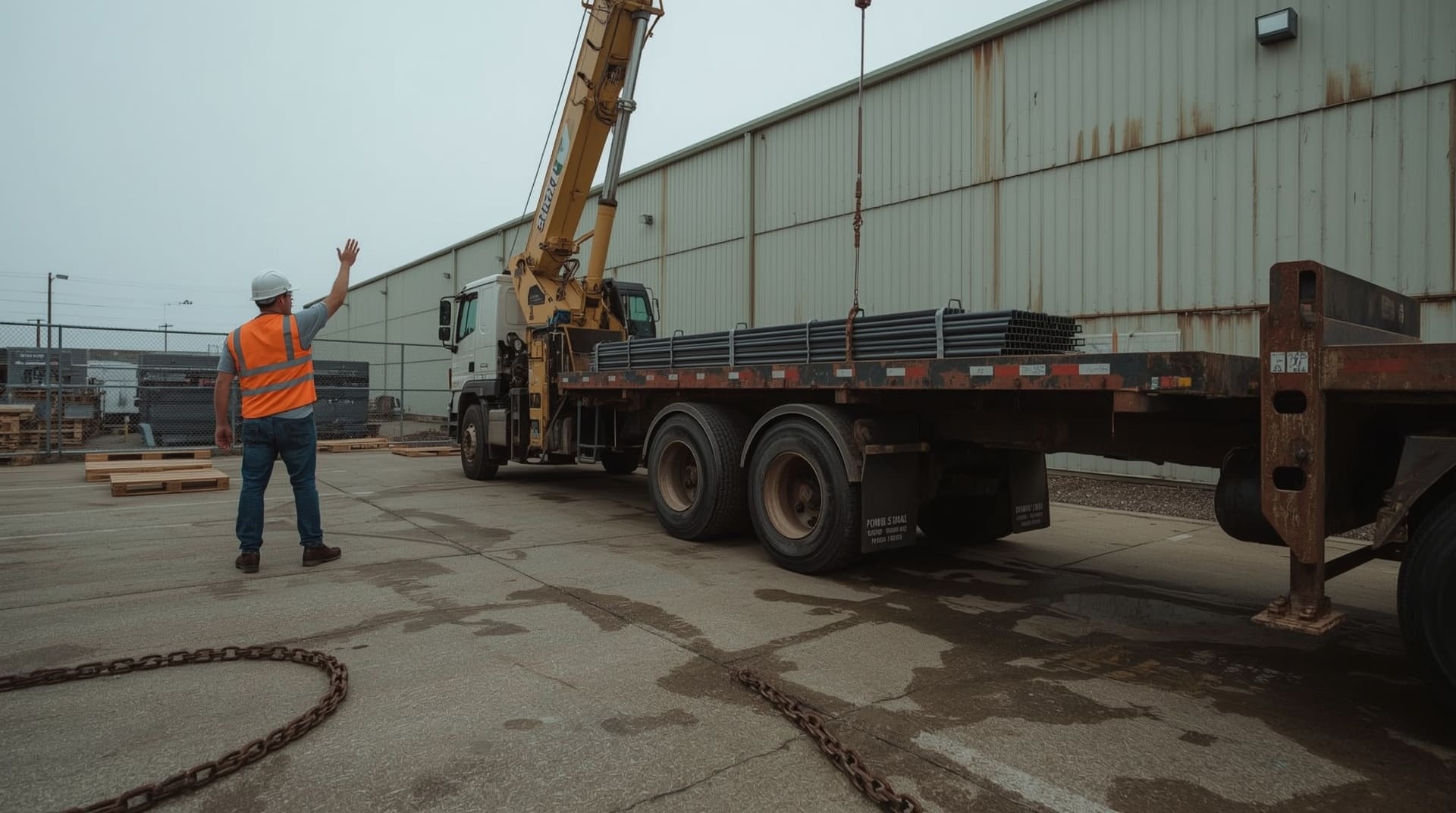

• Communicate with a signal person. When visibility is obstructed at any point in the lift, use a qualified signal person with standardized signals.
• Inspect before operating after any unusual event. A hard landing, overload alarm, or mechanical jolt requires an immediate inspection before the crane resumes work.

Operator Qualification and Training Requirements

OSHA 29 CFR 1926.1427 requires crane operators to be qualified or certified for the equipment they operate. For knuckle boom cranes, this means demonstrating specific knowledge of articulated crane mechanics, hydraulic systems, and load chart interpretation unique to this crane type.

Operators trained only on conventional boom cranes should not assume their skills transfer directly. The articulation geometry, hydraulic dependency, and load dynamics are different enough to require dedicated training. Certification through a program that covers ASME B30.22 and knuckle boom-specific hazards gives operators and employers a documented compliance baseline.

Inspector qualifications matter equally. An inspector who has only worked on lattice boom or overhead cranes may not recognize worn articulation pins or subtle hydraulic drift on a knuckle boom. Crane inspector training specific to articulating boom equipment fills that gap.

Documentation and Compliance Recordkeeping

Every inspection, repair, and operator qualification must be documented and retained. OSHA and ASME standards both require written records of pre-use inspections, periodic inspections, and any deficiencies found and corrected. These records protect your company in the event of an incident investigation and demonstrate a functioning safety program.

At minimum, your recordkeeping system should capture the date, inspector identity, crane identification, deficiencies noted, corrective actions taken, and the inspector’s qualifications. Digital inspection platforms make this easier to manage, but a paper system is equally valid as long as records are legible, complete, and stored accessibly.

Final Thoughts on Knuckle Boom Crane Safety

Knuckle boom crane safety requires more than applying general crane rules to this specific machine. The articulated design introduces hydraulic dependency, multi-joint stress concentration, and dynamic load behavior that demand targeted inspection protocols and operator training. Cutting corners on any of these areas raises the risk of serious incidents significantly.

If your operation runs knuckle boom equipment regularly, invest in proper certification for both operators and inspectors. Build a documented inspection program around ASME B30.22 requirements, train your ground crews on exclusion zones and pinch point hazards, and treat every pre-operation inspection as the safety-critical step it actually is.

Frequently Asked Questions About Knuckle Boom Crane Safety

What OSHA standard applies to knuckle boom crane safety?

OSHA 29 CFR 1926 Subpart CC covers crane and derrick safety on construction sites, including knuckle boom cranes. ASME B30.22 provides the specific design and operational safety standard for articulating boom cranes. Both standards work together to define inspection, qualification, and operational requirements.

How often does a knuckle boom crane need a formal inspection?

At minimum, a daily pre-use inspection is required before each shift. Periodic inspections must occur at intervals based on the crane’s service frequency, ranging from monthly to annually. An annual comprehensive inspection is standard for regularly used equipment, and any unusual event or deficiency triggers an unscheduled inspection before the crane returns to service.

Can a certified mobile crane operator operate a knuckle boom crane?

Not without additional qualification specific to articulating boom cranes. The articulation mechanics, hydraulic systems, and load charts differ significantly from telescoping or lattice boom cranes. OSHA requires operators to be qualified on the specific crane type they operate, so dedicated training and certification for knuckle boom equipment is required.

What are the most common causes of knuckle boom crane accidents?

The most common causes include hydraulic system failures, exceeding load chart capacity at a given boom and articulation angle combination, improper outrigger deployment on soft or uneven ground, and inadequate ground crew exclusion zones. Worn articulation pins that go uninspected until failure are also a significant contributing factor in structural incidents.

What does an articulated crane inspector need to check that differs from other crane types?

Inspectors must pay particular attention to articulation pin and bushing wear, hydraulic cylinder drift under load, hose condition across the full range of boom movement, and load chart accuracy for each possible configuration. Non-destructive testing at the knuckle joint is an important periodic inspection step that is not typically required on straight-boom crane types.
