A crawler crane inspection is a structured assessment of every major system on a track-mounted crane. Because these machines lift heavy loads across uneven terrain, even a small defect can create a catastrophic failure. Inspectors examine the undercarriage, the lattice boom crawler crane assembly, load lines, hydraulics, and dozens of other components before any lift begins.
Whether you manage a construction site in Cary, North Carolina, or oversee crane operations across the state, knowing what inspectors look for keeps your crew safe and your project compliant. This guide walks you through every key component and the specific criteria inspectors use to evaluate each one.
Ready to learn more? Explore professional crane inspection services to keep your equipment safe and compliant.
Types of Crawler Crane Inspections You Need to Know
Not every inspection is the same. Regulatory standards define several distinct categories, each with its own scope and frequency.
- Pre-shift inspection: A visual walkaround performed by the operator before each shift. It catches obvious defects like fluid leaks, frayed wire rope, or loose pins.
- Frequent inspection: A more detailed check done daily or weekly, depending on usage. It includes functional testing of controls, brakes, and limit switches.
- Periodic inspection: A thorough, documented inspection completed monthly to annually. A qualified inspector reviews structural members, load-bearing components, and safety devices.
- Post-incident inspection: Required any time the crane is involved in an accident, overload event, or severe weather exposure before returning to service.
OSHA 29 CFR 1926.1412 outlines these categories in detail. Your inspection program must cover all four to remain compliant on regulated job sites.
The Undercarriage and Crawler Tracks

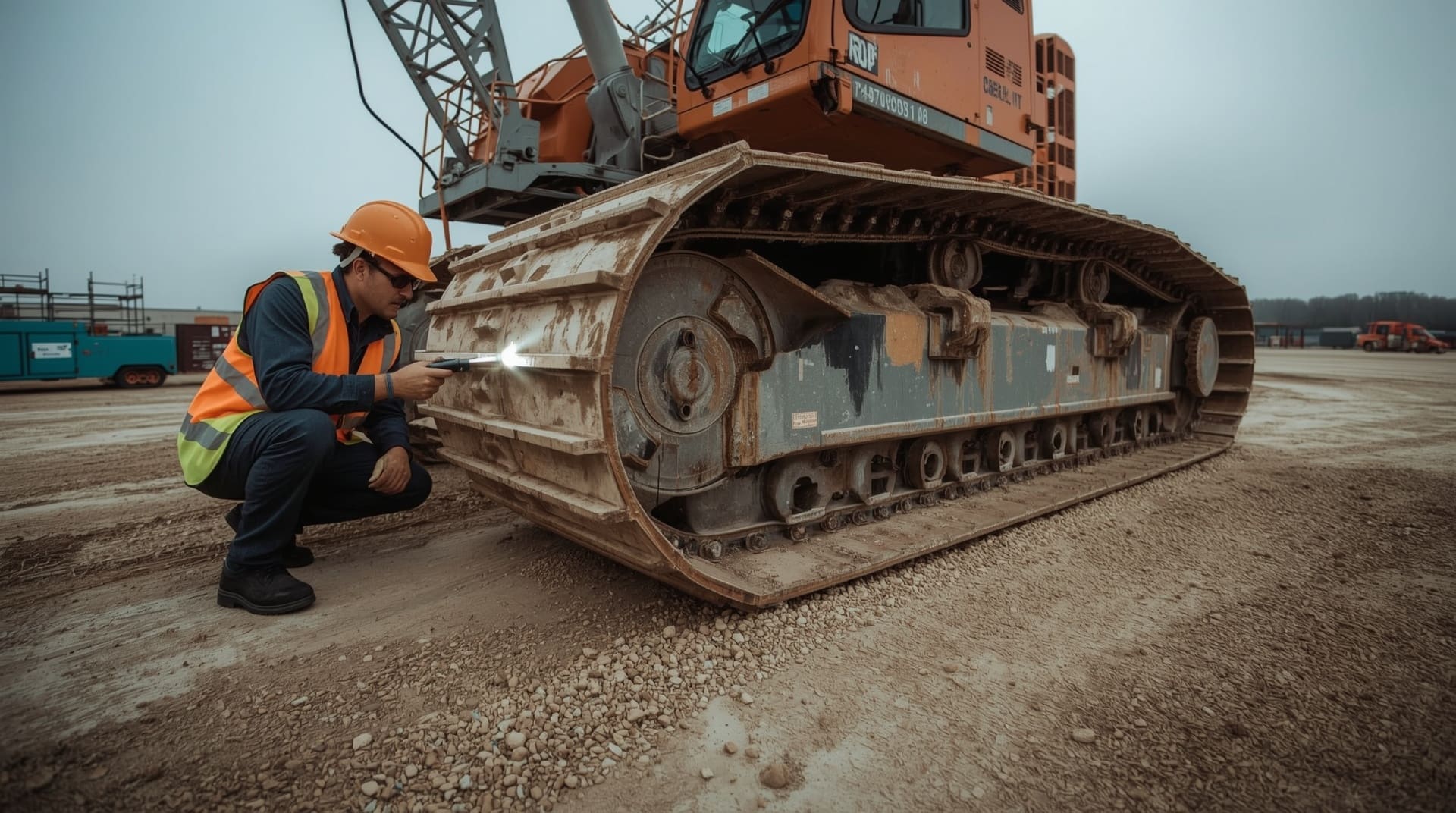

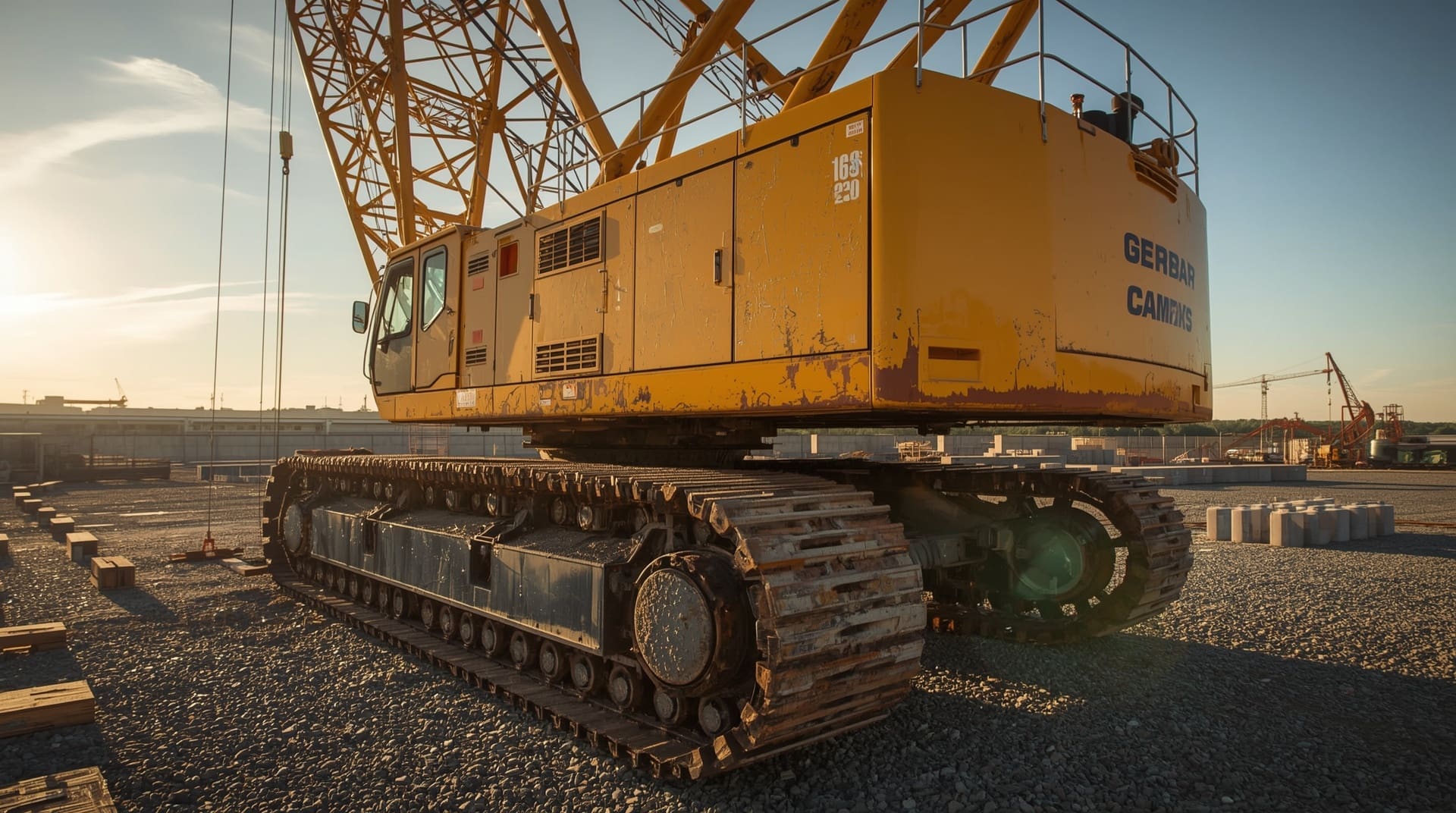

The undercarriage is the foundation of crawler crane safety. It distributes the machine’s enormous weight and provides stable travel across soft or uneven ground. Any failure here can tip the entire crane.
Inspectors check the following items closely:
- Track tension: Tracks that are too loose can derail. Too tight, and they accelerate wear on sprockets and rollers.
- Track shoes: Cracked, bent, or missing shoes reduce ground contact and stability.
- Rollers and idlers: These components guide the track chain. Flat spots, excessive play, or leaking seals signal replacement is needed.
- Drive sprockets: Worn sprocket teeth cause the track to skip or jump during travel.
- Frame welds and structural members: Inspectors look for cracks, corrosion, or deformation along the main frame rails.
Ground conditions matter too. An inspector may note that the crane requires blocking or matting before any lift if soft soil is present.
Lattice Boom Crawler Crane Structural Checks
The lattice boom is the long, open-web steel structure that extends upward from the crane body. It is made of interconnected chord members and lacings, giving it high strength at a relatively light weight. This design also means many individual connection points that all require inspection.
Boom Chord Members
Inspectors look for cracks, bends, or dents in the main chord tubes. Even a small dent can reduce the boom’s rated capacity significantly. Any deformation greater than manufacturer limits requires the section to be taken out of service.
Lacing and Bracing
The diagonal and horizontal members between the chords are called lacing. Missing, cracked, or bent lacing weakens the entire boom section. Inspectors verify that all lacing pins are present, properly secured, and free of excessive wear.
Boom Pin Connections
Each boom section connects to the next through heavy steel pins. Inspectors check pin diameter against manufacturer specs, look for elongation of the pin holes (called “egging”), and confirm that retaining clips or cotter pins are properly installed.
Boom Foot and Mast Connection
The base of the boom attaches to the rotating upper works through the boom foot pins. This is a high-stress area. Inspectors look for cracking in the surrounding structure, wear on the pin itself, and proper lubrication of the connection.
| Boom Component | What Inspectors Check | Common Defect |
|---|---|---|
| Chord Members | Cracks, bends, dents | Impact dents reducing capacity |
| Lacing Members | Missing, cracked, or bent pieces | Loose or absent lacing pins |
| Boom Pins | Diameter, pin hole wear, retainers | Egged pin holes, missing clips |
| Boom Foot Pins | Cracks, wear, lubrication | Dry or corroded connections |
Wire Rope and Load Line Evaluation
Wire rope is the lifeline of any crane lift. It connects the load to the hook and runs through the entire load path. Degraded wire rope is one of the leading causes of crane accidents, so inspectors treat this component with particular care.

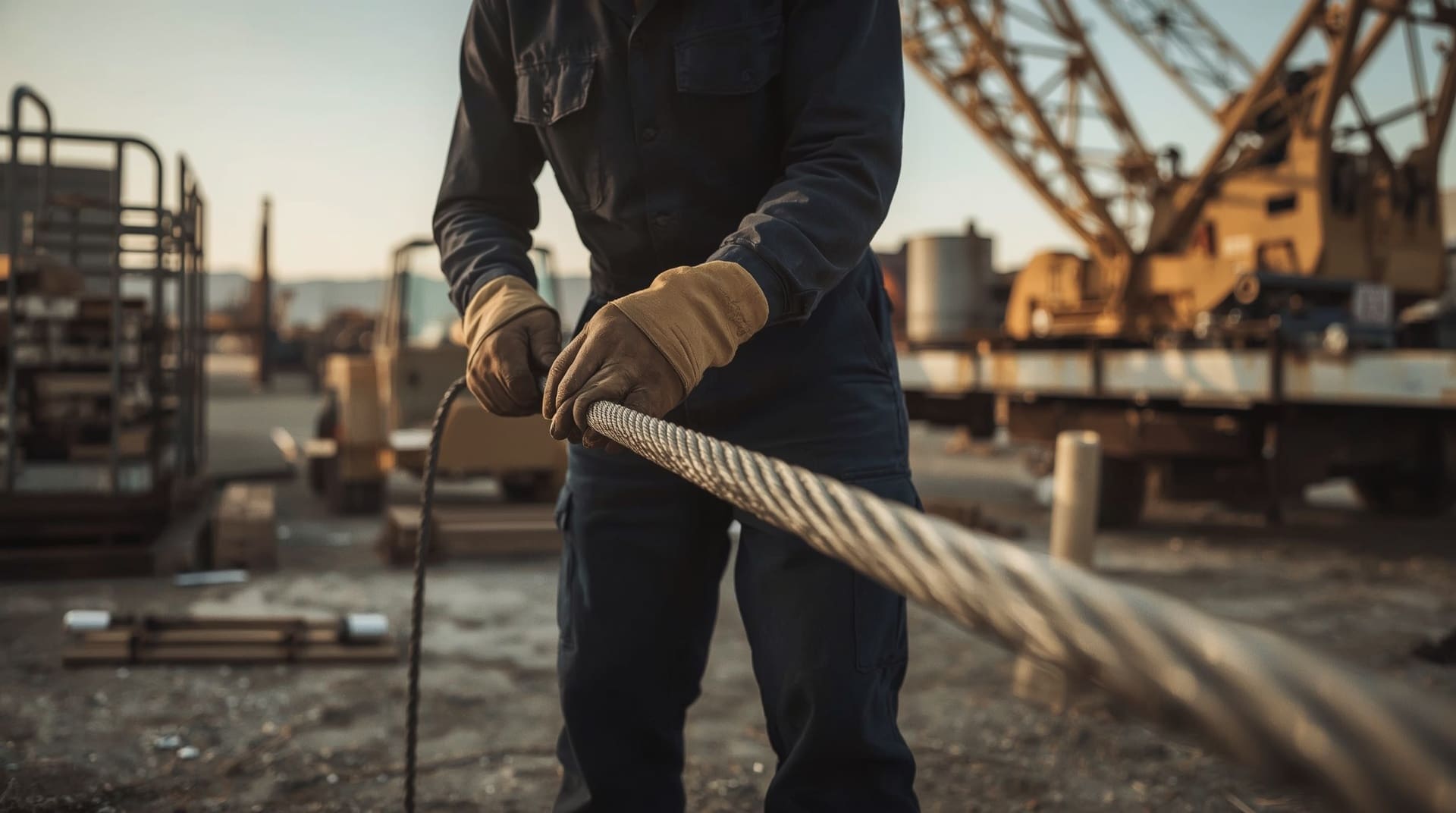

The inspection covers the entire length of wire rope, from the drum to the hook block. Inspectors count broken wires per lay length, a set distance equal to one full twist of the rope. Specific discard criteria apply based on rope construction and ASME B30.5 standards.
- Broken wires: More than the allowable number in one lay length means immediate removal from service.
- Kinking and bird-caging: A kink is a permanent bend. Bird-caging happens when strands splay outward. Both destroy the rope’s rated capacity.
- Corrosion: Surface rust weakens individual wires. Pitting inside the core may not be visible but reduces breaking strength.
- Diameter reduction: A rope that has worn down more than a set percentage below its nominal diameter must be replaced.
- Drum and sheave condition: Worn grooves cause uneven rope wear and accelerate rope fatigue.
Safety Devices and Load Management Systems
Modern crawler cranes carry several automatic safety systems. These devices protect against overload, two-blocking (when the hook block contacts the sheave), and other dangerous conditions. Inspectors verify that every device functions correctly, not just that it exists.
Anti-Two-Block Device
Two-blocking happens when the hook block is raised too high and contacts the head sheave. This can snap the wire rope instantly. The anti-two-block device cuts off the hoist function before contact occurs. Inspectors test it under controlled conditions to confirm it activates at the correct point.
Load Moment Indicator
A load moment indicator (LMI) measures the combination of load weight and boom angle to warn the operator when the crane approaches its rated capacity. Inspectors verify calibration and confirm the display reads accurately against known reference values.
Boom Angle Indicator
The boom angle indicator shows the operator the current angle of the boom. Incorrect boom angle leads to overloading the crane at a given radius. Inspectors check that the indicator reads correctly and is visible from the cab.
Swing Brakes and Travel Locks
Swing brakes hold the upper works from rotating unintentionally. Travel locks prevent the crane from moving while in a stationary lift configuration. Inspectors confirm both engage fully and hold under load.
Hydraulic System and Power Train Components
Even lattice boom crawler cranes use hydraulic systems to control boom raising, swing, and travel functions. Hydraulic failures can cause sudden, uncontrolled movement of the crane or its load.
Inspectors examine these elements:
- Hydraulic hoses and fittings: Cracked, abraded, or bulging hoses are flagged for immediate replacement.
- Cylinder seals: Leaking cylinders lose holding force and may creep under load.
- Fluid level and condition: Contaminated or low fluid causes sluggish response and accelerated component wear.
- Pump and motor function: Inspectors listen for unusual noise and check for excessive heat, which signals internal wear.
- Relief valve settings: These valves protect the system from overpressure. Inspectors confirm settings match manufacturer specifications.
Operator Cab and Control Systems
The operator cab is the command center of the machine. Faulty controls or a compromised cab can cause operator error or prevent emergency response. Inspectors assess both the physical environment and the functional performance of every control.
- Control handles and levers: Stiff, sticky, or erratic controls reduce precision. All handles must return to neutral when released.
- Indicators and gauges: Fuel, hydraulic pressure, and load displays must be readable and accurate.
- Cab windows and visibility: Cracked glass or dirty windows reduce the operator’s ability to see the load path.
- Emergency stop function: Inspectors test the emergency stop to confirm it cuts power to all crane functions immediately.
- Seat and harness: The operator’s seat must be secure, and any required restraint system must be functional.
Documentation and Compliance Requirements for Crawler Crane Safety
A crawler crane inspection without proper documentation has limited legal value. OSHA requires that inspection findings be recorded and retained so that the history of any defect is traceable. Inspectors create written reports covering every item checked, any deficiencies found, and corrective actions taken.
Key documentation requirements include:
- Inspector credentials: The person performing a periodic inspection must be a qualified inspector as defined by OSHA 1926.1401. Their name and qualifications appear in the report.
- Deficiency log: Any item that does not meet standards must be listed with a description of the condition and the repair action required.
- Load chart availability: The crane’s current load chart must be in the cab and match the configured boom length and jib arrangement.
- Maintenance records: Inspectors review prior service records to identify recurring issues or components approaching end-of-life.
In North Carolina, site managers in cities like Raleigh, Charlotte, and the greater Cary area must also account for any state or local requirements that exceed federal OSHA minimums.
Final Thoughts on Crawler Crane Inspection
Crawler crane inspection is not a checkbox exercise. It is a systematic, component-by-component evaluation that protects workers, equipment, and project timelines. From the undercarriage tracks to the top sheave of the lattice boom crawler crane, every element carries risk if it is overlooked or evaluated by someone without the right training.
Working with qualified inspectors and investing in proper crane inspector training keeps your operation compliant and your crews safe. Thorough documentation and consistent inspection frequency are what separate high-performing operations from those that face costly downtime or serious incidents.
Frequently Asked Questions About Crawler Crane Inspection
How often does a crawler crane need to be inspected?
At minimum, a crawler crane requires a pre-shift visual check before every shift and a frequent inspection at least weekly during active use. A full periodic inspection must be completed at intervals not exceeding 12 months or as specified by the manufacturer. Higher-use machines or those in harsh environments may need periodic inspections more frequently.
Who is qualified to perform a crawler crane inspection?
Pre-shift checks are typically performed by the crane operator. Frequent and periodic inspections must be performed by a qualified person, meaning someone with specific knowledge, training, and experience with the crane type. Periodic inspections often require a qualified inspector with documented credentials, as defined under OSHA 29 CFR 1926.1401.
What is the most common defect found during crawler crane inspections?
Wire rope defects, including broken wires, kinking, and corrosion, are among the most frequently cited findings. Undercarriage wear, particularly worn track shoes and loose track tension, is also very common. Regular lubrication and daily walkarounds catch most of these issues before they become serious.
Can a crawler crane be used if minor defects are found?
It depends on the nature of the defect. Some minor findings, such as a small fluid weep or a worn but still-acceptable track shoe, may allow continued operation with a repair scheduled. Other defects, including wire rope discard criteria violations or a non-functioning anti-two-block device, require the crane to be taken out of service immediately until repaired.
What is the difference between a frequent and a periodic crawler crane inspection?
A frequent inspection is a regular operational check focused on visible defects and functional tests of controls and safety devices. It takes less time and is done by the operator or a qualified person on the site. A periodic inspection is a comprehensive, documented evaluation by a qualified inspector that covers structural components, load path systems, and compliance records in full detail.
