Wire rope NDT inspection methods give inspection professionals a way to detect internal and external defects without cutting or destroying the rope. Visual inspection alone misses broken wires hidden inside the rope, corrosion behind the outer strands, and cross-sectional metal loss that develops quietly over thousands of cycles. Nondestructive testing fills that gap. Choosing the right method depends on the defect type you’re looking for, the rope construction, and the access available on-site.

This guide covers the three primary wire rope NDT inspection methods used in crane and lifting applications: electromagnetic testing, ultrasonic testing, and radiographic testing. You’ll find detection capabilities, equipment costs, and the specific scenarios where each method makes the most sense.

Key Takeaways

• Electromagnetic testing (MFL/LMA) is the industry standard — it detects both surface and internal broken wires, metal loss, and corrosion on moving or stationary rope.
• Ultrasonic testing excels at localized flaw detection — it finds cracks and delamination in end terminations and splices where electromagnetic equipment struggles to fit.
• Radiographic testing provides the clearest internal image — but it requires radiation safety protocols and is typically reserved for critical rope segments or failure analysis.
• No single NDT method catches everything — combining methods produces the most complete picture of rope condition.
• OSHA and ASME B30.2 require qualified persons to perform inspections — NDT adds a layer of technical verification that visual checks cannot replace.
• Equipment costs range widely — from $5,000 for entry-level MFL units to over $80,000 for full radiographic setups.

What Are Wire Rope NDT Inspection Methods and Why Do They Matter?

Quick Answer: Wire rope NDT inspection methods are techniques that detect internal and external rope defects without cutting or dismantling the rope. They catch broken wires, corrosion, and metal loss that visual inspection cannot find, helping prevent failure before it happens.

Nondestructive testing (NDT) is any inspection technique that evaluates a component without permanently altering it. For wire rope, this is critical because most catastrophic failures begin with internal damage — broken wires inside the core, fretting corrosion between wires, or gradual cross-sectional metal loss — that looks perfectly fine from the outside.

OSHA 29 CFR 1926.1413 requires periodic wire rope inspections by qualified persons on construction cranes. ASME B30.2 sets similar requirements for overhead and gantry cranes. Neither standard requires NDT specifically, but both recognize that visual inspection has limits. NDT is what qualified inspectors use when visual checks are inconclusive or when a rope has reached an age where internal degradation is statistically likely (OSHA, 29 CFR 1926.1413).

The consequences of a missed defect are severe. A hoist rope failure during a lift puts workers, equipment, and property at risk. NDT inspections don’t replace scheduled removal-from-service criteria — they extend informed decision-making between replacement cycles by giving you data, not guesses.

How Does Electromagnetic Wire Rope Testing Work?

Quick Answer: Electromagnetic testing magnetizes a section of wire rope and measures flux leakage or changes in total metal cross-section. It detects broken wires, corrosion, and metal loss — both inside and outside the rope — as the rope passes through a sensor head.

What Is Magnetic Flux Leakage (MFL) Testing?

Magnetic flux leakage testing uses permanent magnets or electromagnets to saturate the wire rope with a magnetic field. When a broken wire or corrosion pit disrupts the rope’s steel, magnetic flux leaks out of the rope surface. Sensors in the testing head pick up that leakage and convert it into a signal spike on a readout screen.

MFL is highly sensitive to localized flaw detection (LF). A single broken wire — even buried inside the rope’s core — creates a measurable flux leak. Most MFL instruments can detect wires broken at the contact points between strands, which are invisible from the outside and often the first place fatigue failure begins.

What Is Loss of Metallic Area (LMA) Testing?

Loss of metallic area testing measures the total volume of steel present in a cross-section of rope. As wire rope corrodes or fatigues, individual wires thin down. The aggregate steel cross-section shrinks even if no wire is fully broken yet. LMA sensors detect this gradual reduction.

ASME B30.9 removal criteria for slings reference percentage-based metal loss thresholds. LMA testing gives you a direct numeric measurement to compare against those thresholds rather than relying on visual estimation (ASME, B30.9 Slings standard).

What Equipment Is Used for Electromagnetic Wire Rope Inspection?

When Should You Use Electromagnetic Testing on Wire Rope?

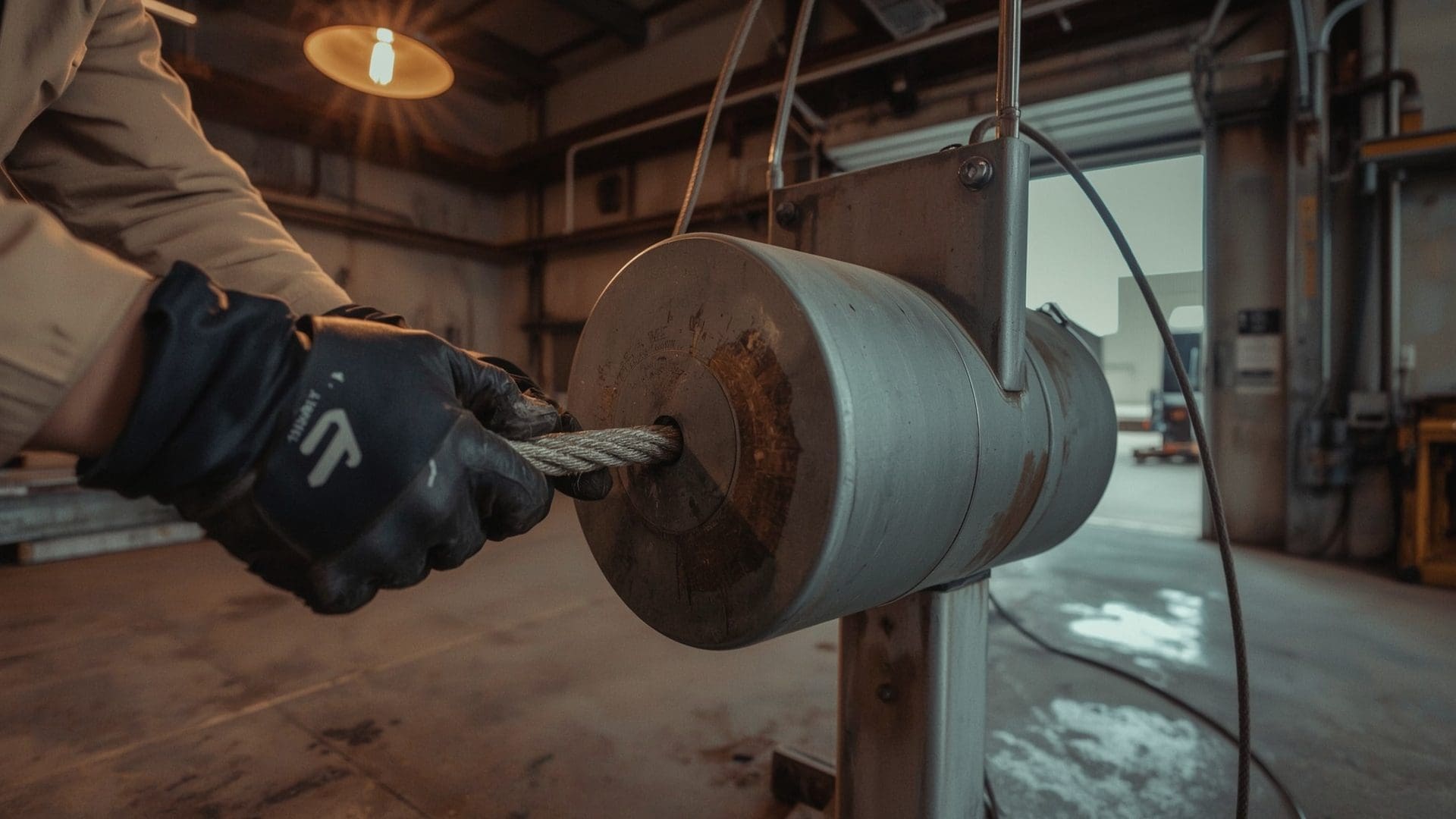

Electromagnetic testing is the best choice when you need to inspect a full rope run quickly. The rope can be moving at operational speed through the sensor head, which means production downtime stays minimal. It’s the preferred method for any crane application where total rope length exceeds 10 meters or where internal broken wires are the primary concern.

If you are conducting a wire rope inspection on a crane hoist with 50 or more meters of rope, electromagnetic testing will cover the entire length in a single pass and flag every zone worth closer visual attention.

How Does Ultrasonic Testing Apply to Wire Rope Inspection?

Quick Answer: Ultrasonic testing sends high-frequency sound waves into wire rope and measures how they reflect back. It detects cracks, voids, and delamination — especially in end terminations, swaged fittings, and splice zones where other methods can’t reach.

What Defects Does Ultrasonic Testing Find in Wire Rope?

Ultrasonic testing (UT) is particularly useful at rope terminations. Swaged fittings, wedge sockets, and spelter sockets create a geometry that electromagnetic equipment can’t magnetize uniformly. UT probes placed directly on the fitting surface can detect cracks propagating from the termination point into the rope body — a common failure mode on heavily cycled hoists.

UT also detects delamination, internal voids, and pitting corrosion that has progressed into the rope’s core. It’s more operator-dependent than MFL — the probe angle, contact pressure, and couplant (the gel that allows sound to enter the rope) all affect result quality.

What Are the Limitations of Ultrasonic Wire Rope Testing?

Ultrasonic testing works best on stationary rope. You can’t run a rope through a UT probe at speed the way you can with electromagnetic equipment. The technique also requires a smooth surface for good sound coupling — heavily corroded rope surfaces scatter sound waves and reduce signal clarity.

Rope diameter also affects UT accuracy. Ropes smaller than 12 mm (about 1/2 inch) present challenges because the sound path through the rope’s geometry becomes too complex for reliable interpretation without advanced phased-array equipment.

What Is Phased-Array Ultrasonic Testing (PAUT) and Is It Used on Wire Rope?

Phased-array ultrasonic testing (PAUT) uses multiple transducer elements that fire in programmed sequences. This creates steered beam angles that scan a wider cross-section of rope in a single pass. PAUT produces a color-coded cross-sectional image of the rope’s interior — think of it as an ultrasound for wire rope.

PAUT is used in offshore mooring and mine hoist applications where the cost of a rope failure is extreme and detailed internal imaging is worth the additional equipment investment. It’s not common in standard crane maintenance programs due to cost and setup time, but it’s growing as the technology becomes more portable.

What Is Radiographic Testing and When Is It Used for Wire Rope?

Quick Answer: Radiographic testing passes X-ray or gamma radiation through wire rope onto a detector film or digital panel. It produces a cross-sectional image showing internal broken wires, corrosion, voids, and geometry changes with high clarity — but it requires radiation safety controls and is typically used for critical segments or forensic analysis.

How Does Radiographic Wire Rope Inspection Work?

Radiographic testing (RT) directs X-ray energy or gamma radiation (from isotopes like Iridium-192) through the rope and onto a detector on the opposite side. Dense steel absorbs more radiation. Gaps — broken wires, voids, corrosion — let more radiation pass through and appear as lighter zones on the resulting image.

RT gives inspectors a true cross-sectional image of what’s inside the rope. Every broken wire is visible. Corrosion that has hollowed out individual wires shows clearly. RT can also reveal rope geometry changes — such as birdcaging (a condition where individual strands push outward and separate) or core protrusion — that aren’t always visible externally.

What Are the Practical Constraints of Radiographic Testing on Wire Rope?

The main constraint is radiation safety. Any area where RT is being performed must be cleared of personnel, and the operator must follow strict distance and shielding protocols per NRC and OSHA radiation safety requirements. Most field radiographic testing happens during scheduled downtime or shutdowns.

RT is also slower than electromagnetic testing. Each exposure covers a limited rope segment — typically 12 to 18 inches — so inspecting a long rope run requires many exposures and significant time. This makes RT impractical as a routine inspection tool for operational crane ropes.

Is Radiographic Testing Required by OSHA or ASME for Wire Rope?

No. OSHA and ASME standards do not require radiographic testing for routine wire rope inspection. RT appears most often in post-incident investigations, qualification testing of rope designs, and high-consequence applications such as nuclear facility crane operations or offshore platform mooring systems. It is a tool of engineering judgment, not a regulatory mandate.

How Do the Three Wire Rope NDT Methods Compare?

Quick Answer: Electromagnetic testing covers full rope runs fast and finds internal broken wires. Ultrasonic testing targets terminations and localized flaws in stationary rope. Radiographic testing gives the most detailed internal image but is slow, expensive, and requires radiation safety controls. Most programs combine MFL with visual inspection.

What Training Do Inspectors Need to Perform Wire Rope NDT Inspections?

Quick Answer: Wire rope NDT inspectors need method-specific training: ASNT Level II certification for UT and RT, manufacturer-specific training for electromagnetic equipment, and a foundational understanding of wire rope construction, failure modes, and removal criteria per ASME B30 standards.

What Is ASNT Certification and Why Does It Apply Here?

The American Society for Nondestructive Testing (ASNT) sets the professional certification standard for NDT practitioners in the United States. ASNT SNT-TC-1A outlines qualification levels: Level I (perform and record tests under supervision), Level II (interpret results, write procedures, train Level I personnel), and Level III (develop methods, establish programs, interpret codes).

For wire rope ultrasonic and radiographic testing, most inspection specifications require ASNT Level II. Electromagnetic testing of wire rope is governed by equipment-specific training from manufacturers like Röntgen Technische Dienst (RTD), Magnograph, or Certification of Rope (CERTEX) systems. ASNT is working toward formal MFL rope testing certification tracks, but as of now, manufacturer qualification is the primary standard for electromagnetic rope inspection.

How Does Crane Inspector Training Relate to Wire Rope NDT?

Crane inspectors who understand wire rope construction, failure modes, and removal criteria are better equipped to interpret NDT findings in context. An MFL scan flagging metal loss in a section of rope means different things depending on whether that section passes over a sheave or hangs free. That contextual judgment comes from hands-on crane inspection experience, not just NDT training.

Inspectors who want to build both skill sets should consider structured crane inspector training that covers ASME B30 removal criteria alongside field experience. NDT results without removal-from-service knowledge don’t drive safe decisions.

How Do You Integrate Wire Rope NDT Methods Into an Inspection Program?

Quick Answer: Build your program around electromagnetic testing as the primary tool for full rope scans, supplement with ultrasonic testing at terminations, and reserve radiographic testing for post-incident or critical lift scenarios. Document every scan, compare results over time, and tie removal decisions to ASME B30 criteria.

What Is the Recommended NDT Inspection Frequency for Wire Rope?

Inspection frequency depends on rope service class. A hoist rope on a crane running three shifts per day in a steel mill needs more frequent NDT cycles than a seldom-used maintenance crane. OSHA 29 CFR 1926.1413 requires monthly inspections for active construction crane ropes, with more frequent checks if conditions warrant. ASME B30.2 requires periodic inspections at intervals set by a qualified person based on environment, frequency of use, and rope history.

A practical starting point for NDT frequency: run an electromagnetic scan every time the rope accumulates 500 operating hours or shows any visual indicator of internal damage — kinking, bird-caging, core protrusion, or significant diameter reduction. Log every scan result so you can track trending metal loss over time rather than making each scan a standalone event.

How Should NDT Results Be Documented and Used for Removal Decisions?

Every NDT inspection should produce a written report with rope identification (serial or tag number), inspection date, equipment used, operator certification level, scan speed, and a marked readout showing signal anomalies. Photographs of the physical rope at flagged zones should accompany the electronic data trace.

Compare each new report against previous scans for the same rope. An LMA reading of 4% metal loss on a six-month-old rope that was at 1% three months ago is a different situation than a rope that has held steady at 4% for a year. Trending is where NDT data becomes a genuine management tool rather than a compliance checkbox.

Qualified persons making removal-from-service calls should be familiar with the full chain: NDT data, visual condition, operating history, and the applicable ASME B30 removal criteria. Documented programs help demonstrate that process to regulators and insurance underwriters. For programs that need structured oversight, professional crane and equipment inspection services can provide both the NDT capacity and the qualified personnel to interpret findings correctly.

Frequently Asked Questions About Wire Rope NDT Inspection

Can electromagnetic wire rope testing detect broken wires inside the core?

Yes. Magnetic flux leakage testing detects broken wires anywhere in the rope’s cross-section, including inside the independent wire rope core (IWRC). The flux leakage signal from an internal break is slightly smaller than an external break, but modern digital instruments separate and flag both. Core wire breaks are one of the most dangerous defect types because they’re completely invisible to visual inspection.

Is visual inspection still required if you use NDT methods?

Yes. OSHA and ASME standards require visual inspection by a qualified person regardless of NDT use. Visual inspection checks for conditions NDT can miss — kinking, heat damage, mechanical abuse, improper winding, and end termination condition. NDT and visual inspection are complementary, not interchangeable.

What is the difference between LMA testing and MFL testing?

MFL (magnetic flux leakage) detects localized flaws — individual broken wires, corrosion pits, and nicks. LMA (loss of metallic area) measures the total steel cross-section and flags gradual metal loss spread across a rope section. Most modern instruments do both simultaneously, but they detect fundamentally different failure modes. A rope can pass MFL with no broken wires and still fail LMA criteria because of widespread wire thinning.

Do you need to stop rope movement for electromagnetic inspection?

No. Electromagnetic testing is one of the few NDT methods that works on rope moving at operational speed. The sensor head clamps around the rope and the rope runs through it during normal hoist operation. Some instruments are rated for inspection speeds up to 3.0 meters per second. This minimizes downtime compared to methods that require the rope to be stationary.

How much does a wire rope NDT inspection cost as a service?

Service cost for a third-party electromagnetic wire rope inspection typically ranges from $400 to $1,500 per rope, depending on rope length, diameter, and access conditions. Ultrasonic termination inspection adds $150 to $400 per termination. Radiographic inspection is priced per exposure, usually $200 to $600 per exposure, plus setup and radiation safety costs. These are general ranges — complex applications and remote site access will increase costs.

What certification should a wire rope NDT inspector hold?

For electromagnetic testing, look for manufacturer-specific training certification and ideally ASNT experience in MFL methods. For ultrasonic testing, ASNT Level II UT is the industry standard. For radiographic testing, ASNT Level II RT plus a valid radiation worker license issued by the applicable state or the NRC is required. Crane inspector credentials from NCCCO or similar organizations complement NDT certifications by providing rope construction and removal criteria knowledge.

Sources

• OSHA, 29 CFR 1926.1413 — Wire Rope Inspection Requirements for Cranes in Construction
• ASME, B30.9 Slings — Safety Standard for Cableways, Cranes, Derricks, Hoists, Hooks, Jacks, and Slings
• ASNT, SNT-TC-1A — Personnel Qualification and Certification in Nondestructive Testing
