An overhead bridge crane that fails mid-lift doesn’t just stop production. It puts people at risk. Most crane failures are preventable — and they share a common root cause: skipped or incomplete preventive maintenance (PM). A structured PM program catches worn components, misaligned runway beams, and degraded electrical systems before they become emergencies.

This guide gives maintenance planners and facility managers a practical, ready-to-use framework. You’ll find daily, weekly, monthly, and annual checklists, lubrication schedules, electrical inspection steps, runway alignment procedures, and documentation templates — all organized around ASME B30.2 and CMAA standards.

Key Takeaways

• PM frequency depends on duty cycle — a CMAA Class F crane needs more frequent inspections than a Class B crane running light loads.
• Lubrication is the single most impactful PM task — improper or missed lubrication causes more premature component wear than any other factor.
• Runway alignment drifts over time — rail gauge, straightness, and elevation should be measured at least annually to prevent wheel flange wear and structural fatigue.
• Electrical inspections require a qualified person — loose connections, worn contactors, and degraded insulation are leading causes of crane downtime.
• Documentation is a compliance requirement — OSHA 1910.179 and ASME B30.2 both require written records of all inspections and repairs.
• Reactive maintenance costs 3 to 5 times more than a structured PM program when you account for emergency labor, expedited parts, and production losses.

What Is a Preventive Maintenance Program for Overhead Cranes?

Quick Answer: An overhead crane preventive maintenance program is a scheduled set of inspections, adjustments, lubrication tasks, and documentation steps performed at defined intervals. Its goal is to find and fix component wear before it causes failure, downtime, or injury.

A PM program is not a single checklist. It’s a layered system of tasks performed at different intervals — daily, weekly, monthly, quarterly, and annually. Each interval targets the components most likely to degrade in that timeframe.

ASME B30.2 categorizes crane inspections into two types: frequent inspections (daily to monthly, performed by operators or maintenance staff) and periodic inspections (monthly to annually, performed by a qualified person). A well-built PM program satisfies both requirements.

The scope of your PM program should match your crane’s duty cycle classification. A crane rated CMAA Class D or higher running multiple shifts per day needs shorter inspection intervals and more attention to wear components than a lightly used Class B utility crane.

How Do Duty Cycle Classifications Affect PM Frequency?

The CMAA (Crane Manufacturers Association of America) defines six duty cycle classes: A through F. Higher classes indicate more lifts per hour, heavier average loads, and longer daily run times. Each class requires progressively shorter PM intervals.

What Should Be on a Daily Overhead Crane Inspection Checklist?

Quick Answer: Daily checks are performed by the crane operator before each shift. They cover hook condition, wire rope reeving, limit switches, controls, brakes, and any visible structural damage. The whole process takes 5 to 10 minutes and must be documented.

Daily inspections are the operator’s responsibility under ASME B30.2 and OSHA 1910.179. They don’t require disassembly or tools — they’re visual and functional checks that catch overnight changes or damage from the previous shift.

Daily Operator Checklist: Component-by-Component

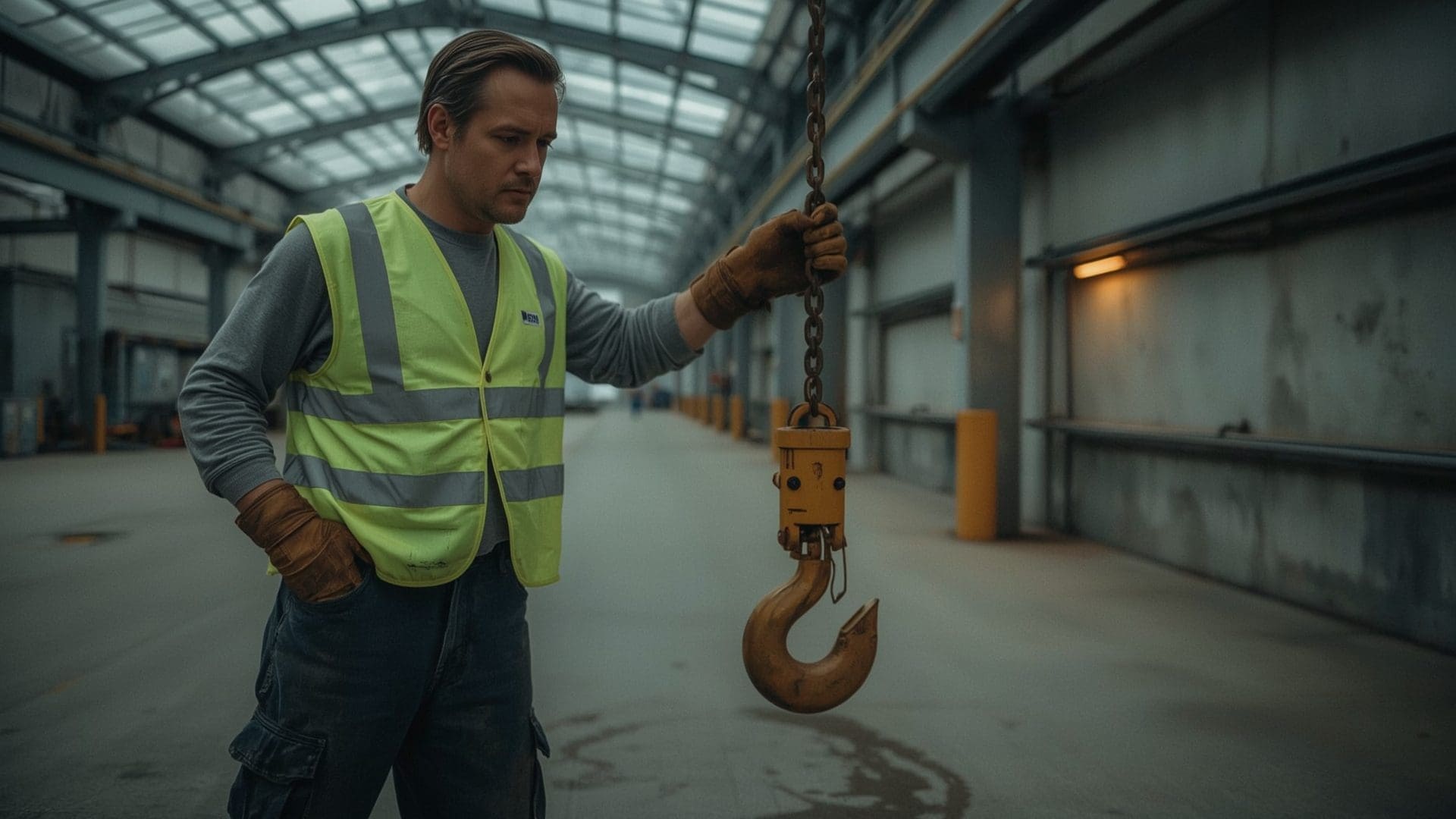

• Hook and latch: Check for cracks, deformation, twist, or throat opening beyond 15% of original dimension. Confirm latch seats fully.
• Wire rope: Inspect for broken wires, kinking, crushing, corrosion, or bird-caging. Look at the dead-end anchor connection.
• Limit switches: Test upper and lower hoist travel limits at slow speed before loading.
• Brakes: Apply and release the hoist brake under a light test load. Confirm the load holds without drift.
• Controls and pendants: Check all pushbutton functions (up, down, east, west, north, south). Confirm emergency stop works.
• Runway and bridge: Walk the floor under the crane and look for oil drips, unusual wear patterns on the floor, or visible structural cracks.
• Warning devices: Test horn or bell. Confirm warning lights function if installed.
• No-load test: Run the bridge and trolley through full travel range before loading. Listen for unusual sounds.

What Does a Monthly Preventive Maintenance Inspection Cover?

Quick Answer: Monthly PM covers mechanical wear components, lubrication replenishment, brake adjustment checks, and electrical connection inspections. A qualified maintenance technician performs this work and records findings with measurements, not just pass/fail notes.

Monthly tasks go deeper than daily operator checks. The goal is to measure wear and catch trends before components reach rejection criteria. Documenting actual measurements — not just “OK” or “checked” — is what makes monthly PM data useful over time.

Monthly Mechanical Inspection Tasks

• Wire rope: Measure rope diameter at three points along the working length. Compare to nominal diameter. Remove from service if diameter reduction exceeds 6% for 6-strand rope or 5% for rotation-resistant rope.
• Sheaves and drums: Inspect for groove wear, cracks, and flange damage. Check rope tracking and dead wraps (minimum two dead wraps on drum at all times).
• Hooks: Measure throat opening with calipers. Document and compare to baseline. Inspect for cracks using dye penetrant if surface pitting is visible.
• Gear reducers: Check oil level through sight glass. Look for leaks at seals and gaskets. Listen for abnormal noise during operation.
• Bridge and trolley wheels: Inspect wheel flanges for wear. A flange worn more than 50% of original thickness should be scheduled for replacement.
• End trucks: Check axle bolts for torque. Inspect bearing housings for grease leakage or heat discoloration.
• Structural members: Walk the bridge girder and inspect for visible cracks, especially at welded connections and web-to-flange joints.

Monthly Brake Inspection and Adjustment Steps

Hoist brakes are safety-critical. A brake that drifts more than 1 inch under rated load must be adjusted before the crane returns to service. Monthly brake checks include:

1. Load the hoist to 125% of rated capacity using a test weight or load cell.
2. Lift the load 12 to 18 inches off the floor.
3. Release the controls and observe drift for 60 seconds.
4. Measure and record any vertical movement of the load.
5. Inspect brake lining thickness. Replace when lining is worn to within 1/16 inch of rivets or when friction material is less than 25% of original thickness.
6. Check brake spring tension and solenoid air gap against the manufacturer’s specification.

What Is the Correct Lubrication Schedule for an Overhead Bridge Crane?

Quick Answer: Overhead crane lubrication intervals range from daily (wire rope in severe environments) to annual (gear reducer oil changes). The correct lubricant type and interval depend on the component, operating temperature, duty cycle, and the manufacturer’s specifications.

Lubrication failure is the leading cause of premature bearing and gear wear in overhead cranes. The right lubricant in the wrong place — or a correct lubricant applied too infrequently — causes the same damage as no lubrication at all. Always follow the crane manufacturer’s lubricant specifications first; the table below reflects common industry defaults.

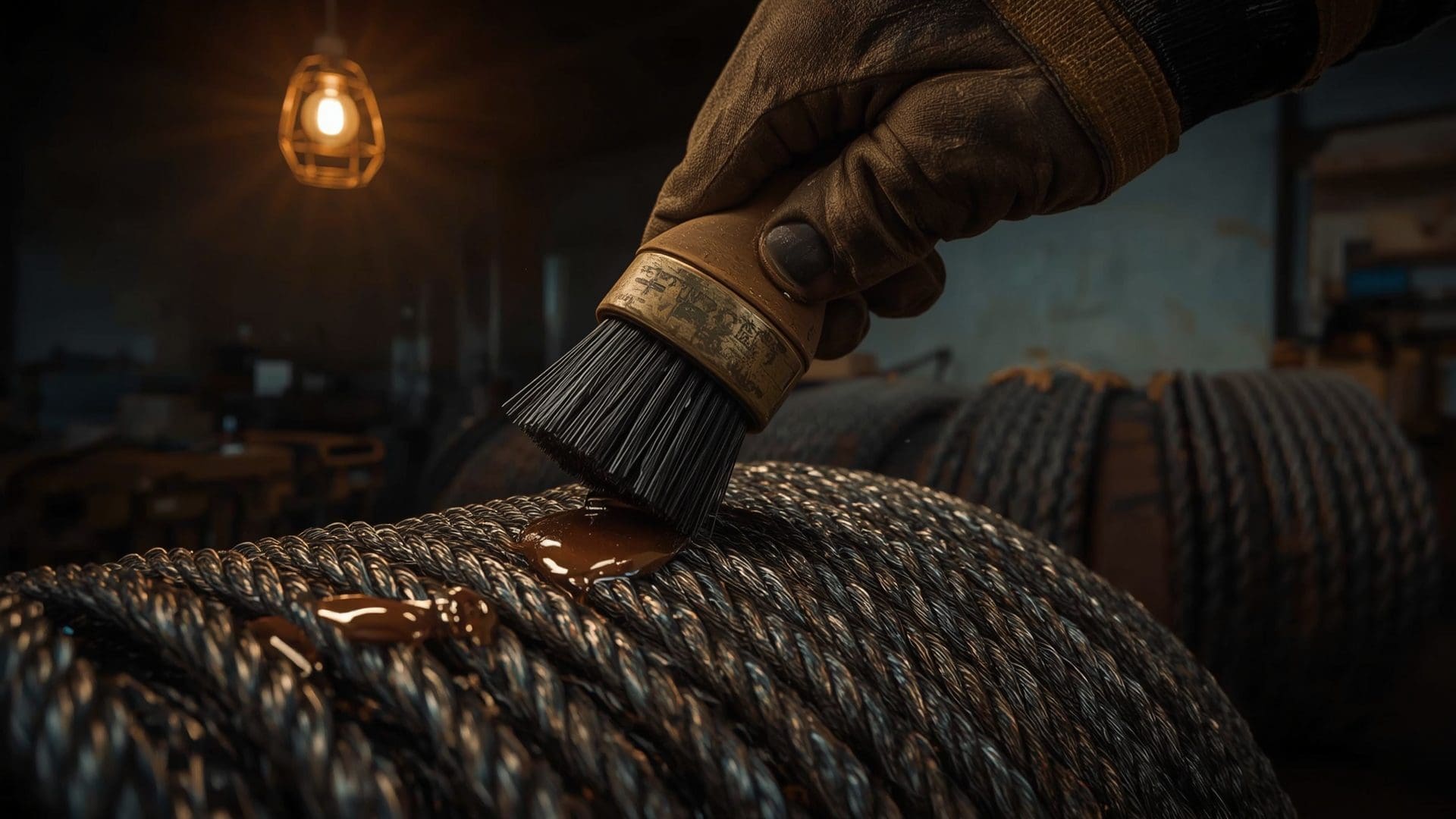

When lubricating wire rope, apply lubricant to the rope as it moves slowly off the drum. This lets the lubricant penetrate the core strands, not just coat the outside. Surface-only lubrication provides corrosion protection but doesn’t reduce internal wire-to-wire friction, which is where most fatigue breaks originate.

What Lubricants Should Never Be Mixed?

Mixing incompatible greases is one of the most common PM mistakes. Lithium complex and calcium sulfonate greases, for example, lose their structural integrity when combined. The result is a watery, ineffective lubricant that speeds up bearing failure rather than preventing it.

Before switching lubricant brands or types, flush the component with a compatible purge grease. Never assume two greases labeled “lithium” are interchangeable — the thickener system and additive package may be incompatible.

How Do You Inspect and Correct Overhead Crane Runway Alignment?

Quick Answer: Runway alignment inspection measures rail gauge, straightness, elevation difference between rails, and column plumb. Misalignment beyond CMAA tolerances causes wheel flange wear, premature bearing failure, and structural fatigue in end trucks and bridge girders.

Runway alignment is often the last PM task to get attention, but it’s one of the highest-impact. A crane that runs on a misaligned runway experiences side loading on every wheel, every travel cycle. Over months, that side loading wears flanges, fatigues axle bearings, and induces lateral forces into the bridge structure.

Runway Alignment Measurement Procedure

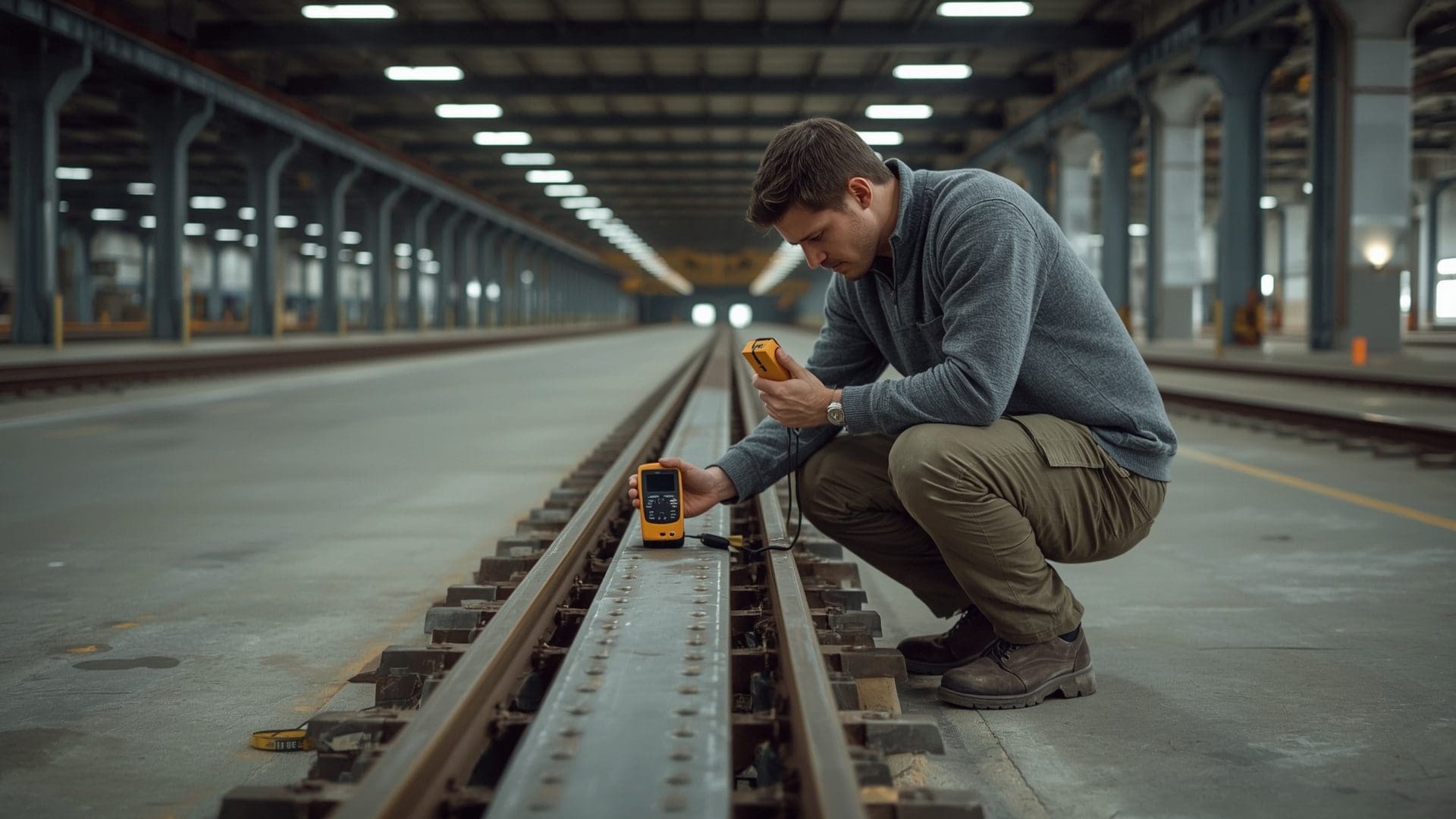

1. Clear the runway: Remove the crane from the measurement zone and lock it out. The runway must be unloaded during measurement.
2. Establish a baseline: Use a total station, laser alignment tool, or piano wire method to establish a true straight reference line along each rail.
3. Measure rail gauge: Record the distance between rail centerlines at every column line. Compare to the crane’s design gauge dimension. CMAA tolerance for gauge variation is ±1/4 inch for spans up to 50 feet, ±3/8 inch for spans over 50 feet.
4. Check rail straightness: Measure horizontal deviation from your reference line at each column. CMAA allows a maximum of 1/8 inch deviation over any 20-foot section.
5. Measure elevation difference: Use a digital level or optical level to compare rail elevation at matching column positions. Maximum allowable difference between the two rails is 3/16 inch for most standard crane applications.
6. Check column plumb: Verify runway support columns are vertical. Leaning columns indicate settlement or base plate damage.
7. Inspect rail fasteners: Check clip bolts and rail clips for looseness, cracking, or missing hardware. Loose rail clips allow rail creep, which gradually shifts the gauge out of tolerance.
8. Document measurements: Record measurements at each station on a runway alignment map. Compare to the previous year’s readings to identify trends.

What Electrical Components Need to Be Checked During Crane PM?

Quick Answer: Crane electrical PM covers contactors, overload relays, limit switches, festoon cables, conductor bar systems, grounding continuity, and motor insulation resistance. A qualified electrician must perform voltage-on testing, while visual checks can be done during lockout.

Electrical failures are responsible for a large share of unplanned crane downtime. They’re also among the hardest to predict from visual inspection alone, which is why a structured electrical PM schedule matters. The most common electrical failure modes are contact erosion in contactors, insulation breakdown in motor windings, and broken conductors in festoon cable systems.

Electrical PM Task List by Component

When you perform a megger test (insulation resistance test) on a motor, always disconnect the motor leads from the drive or contactor first. Testing with the leads connected will damage the drive’s solid-state components. Record baseline values when the crane is new and trend them annually — a reading that drops 50% from baseline is an early warning of winding degradation, even if it hasn’t failed yet.

How Should Overhead Crane PM Documentation Be Structured?

Quick Answer: PM documentation should record the crane ID, date, inspector name, each task performed, actual measurements (not just pass/fail), deficiencies found, corrective actions taken, and parts replaced. OSHA and ASME B30.2 require records to be retained and available for review.

Good documentation does three things: it proves compliance, it enables trend analysis, and it protects your organization in the event of an incident investigation. A checklist that only records “OK” next to each item has no trend value. Recording actual measurements — wire rope diameter, brake drift distance, insulation resistance in megohms — lets you see when a component is heading toward failure before it gets there.

Required Fields for a Compliant PM Record

• Crane identification: Asset number, crane type (bridge, gantry), capacity rating, hoist model number
• Date and time: Inspection start and completion time
• Inspector name and qualification: For periodic inspections, the qualified person’s name and certification reference
• CMAA duty class and service rating: To confirm the correct PM interval is being applied
• Each inspection item: Task description, actual measurement or observation, acceptance criterion, pass/fail status
• Deficiencies found: Describe the problem specifically — “wire rope diameter measured 0.91 inches against 1.0-inch nominal, 9% reduction, remove from service”
• Corrective actions: What was done, by whom, what parts were used (part numbers, quantities)
• Next scheduled PM date: Based on duty cycle and any findings that warrant a shortened interval
• Supervisor or authorized person sign-off

How Long Must Crane Inspection Records Be Retained?

OSHA 1910.179 does not specify a retention period for crane inspection records, but most legal and compliance frameworks recommend keeping PM records for the life of the equipment plus three years. ASME B30.2 requires that periodic inspection records be kept until the next periodic inspection is completed. For cranes involved in incidents, all records become legal documents and should be preserved indefinitely.

Digital maintenance management systems (CMMS) are the preferred method for record storage. They allow trend analysis across multiple cranes, automated PM scheduling, and instant retrieval for compliance audits.

What Is the Annual Overhead Crane PM Inspection Scope?

Quick Answer: The annual PM inspection is the most comprehensive review of the year. It covers all daily and monthly tasks plus structural member inspection, full runway alignment survey, motor megger testing, load brake testing, hook NDT (dye penetrant or magnetic particle), and gear oil changes.

Annual PM is where you conduct the inspections that require the crane to be fully removed from service, cooled down, and de-energized. Budget 4 to 8 hours of downtime for a typical 10-ton to 30-ton bridge crane. Larger cranes or those with multiple hoists may require a full day.

Annual PM Master Checklist

• Complete all monthly PM tasks
• Perform full runway alignment survey (all parameters from the alignment table above)
• Drain and replace gear reducer oil (analyze old oil for metal particles using wear particle analysis)
• Megger test all motors (record and trend readings)
• Perform hook NDT using dye penetrant or magnetic particle inspection
• Inspect wire rope end connections (swaged sockets, wedge sockets, crosby clips) for deformation, corrosion, and slippage marks
• Perform load brake (holding brake) test at 125% rated load
• Inspect bridge girder welds at high-stress zones using visual and dye penetrant methods
• Check all structural bolted connections for proper torque
• Clean and inspect entire electrical enclosure and panel
• Test all safety devices: upper limit, lower limit, overload relay, emergency stop, anti-collision (if installed)
• Review previous year’s PM records and replace any component showing consistent decline toward rejection criteria

What Wear Limits Trigger Component Replacement?

How Do You Build a Sustainable Overhead Crane PM Program?

Quick Answer: A sustainable crane PM program combines written procedures, a CMMS for scheduling and records, trained technicians, and management support for budget and downtime allocation. Without scheduled downtime, even the best checklists don’t get executed.

The most common reason PM programs fail isn’t lack of knowledge — it’s lack of scheduled downtime. PM has to be treated as non-negotiable production time. When a PM window competes with a production rush, PM loses. That trade-off eventually leads to a much longer unplanned outage.

Steps to Implement a PM Program From Scratch

1. Inventory all cranes: Document each crane’s asset number, capacity, hoist model, CMAA class, and installation year.
2. Assign PM intervals: Use the duty cycle table above to set daily, monthly, quarterly, and annual PM schedules for each crane.
3. Build checklists per crane: Generic checklists miss manufacturer-specific items. Pull the OEM maintenance manual for each hoist and crane and add any unique requirements to your base checklist.
4. Train your technicians: At minimum, annual PM work should be performed by a qualified person as defined by ASME B30.2 — someone who has training and experience specific to crane inspection.
5. Enter all schedules into your CMMS: Auto-generate work orders so PM never gets lost in a paper pile.
6. Review records quarterly: Look for components trending toward rejection criteria and schedule replacements proactively.
7. Adjust intervals based on findings: If monthly inspections consistently show accelerating wear, shorten the interval. If a lightly used crane consistently shows no degradation, document the justification for extending the interval.

Frequently Asked Questions

Who is qualified to perform a periodic crane inspection?

A qualified person, as defined by ASME B30.2, is someone who has the skill, knowledge, and experience to identify hazards related to crane inspection. This typically means a trained maintenance technician, certified crane inspector, or a licensed engineer depending on the inspection scope. The key requirement is documented training and measurable experience with the specific crane type being inspected.

How often should wire rope be replaced on an overhead crane?

Wire rope replacement is based on condition, not a fixed calendar schedule. You remove rope from service when it meets any rejection criterion: a diameter reduction of 6% or more, six or more broken wires in one rope lay length, evidence of kinking, or visible corrosion pitting. Monthly diameter measurements and annual full-length inspections are what determine replacement timing.

Can an overhead crane be used if a limit switch is not working?

No. A non-functional hoist limit switch is a safety deficiency that removes the crane from service immediately under ASME B30.2. The upper limit switch is the last line of defense against a two-blocking event, where the hook block contacts the sheave housing and causes sudden rope failure. The crane must be tagged out and the switch repaired before it returns to service.

What is a megger test and why is it used on crane motors?

A megger test (insulation resistance test) applies a DC voltage — typically 500V or 1,000V — to a motor winding to measure how well the insulation resists current leakage. It catches winding degradation caused by heat, moisture, or contamination before the motor fails in service. A reading below 1 MΩ per kilovolt of motor rating indicates compromised insulation that needs investigation.

How do you know if a runway rail needs re-shimming?

Accelerated wheel flange wear is the most visible sign of runway misalignment. When you measure the alignment and find gauge variation beyond CMAA tolerances — more than 1/4 inch for spans under 50 feet — rail shimming or clip adjustment is required. Elevation differences beyond 3/16 inch between rails at matched columns also trigger re-shimming of the runway beam.

What is a CMMS and do you need one for crane PM?

A CMMS (Computerized Maintenance Management System) is software that schedules, tracks, and records maintenance work orders. You don’t legally need one, but it’s the most reliable way to ensure PM intervals are met, records are retained, and trends are visible over time. For facilities with five or more cranes, manual PM tracking in spreadsheets becomes a compliance and reliability risk.
