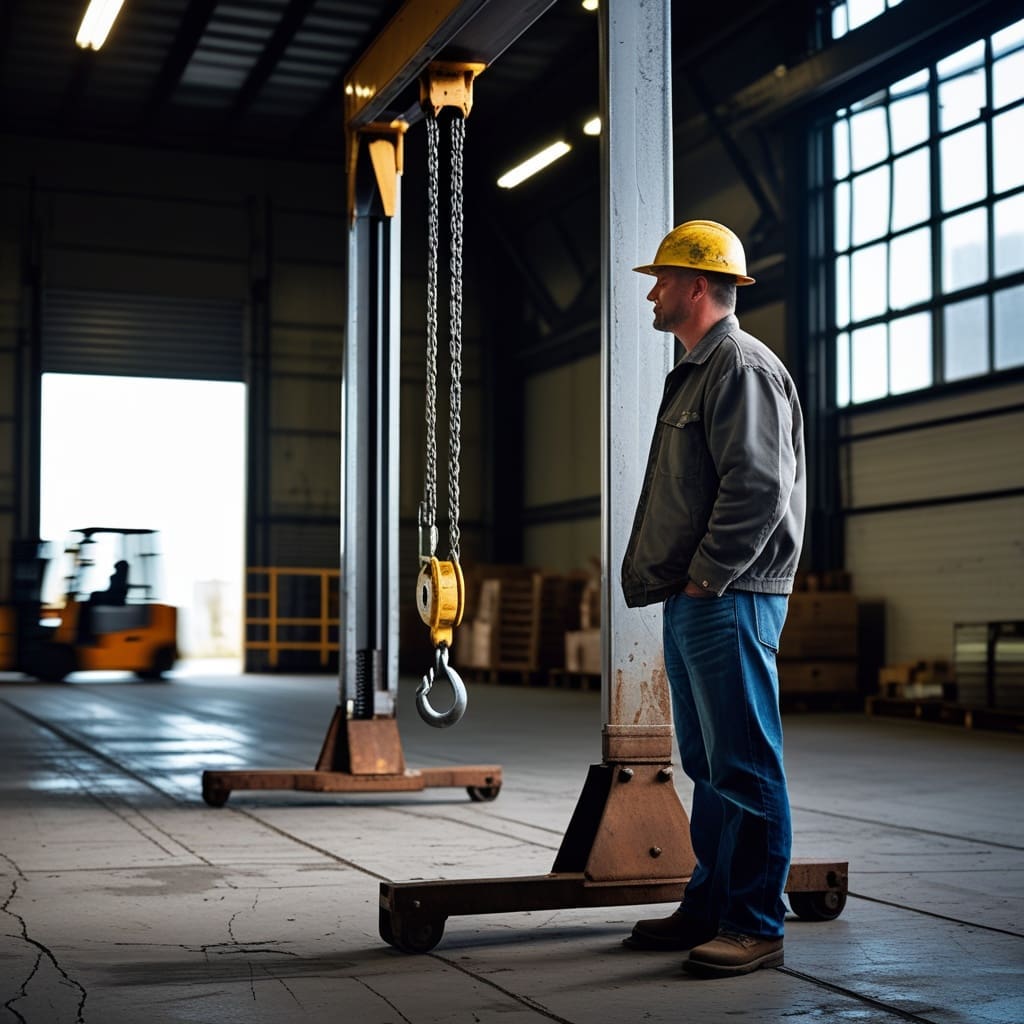

A gantry crane is a hoisting machine built on a freestanding frame whose legs roll on wheels, casters, or rails, rather than hanging from a building’s overhead runway. This design lets a facility set up lifting capability almost anywhere, in a warehouse aisle, a rail yard, or an open job site, without installing steel columns or ceiling-mounted supports. Capacities on common models span from a quarter ton for light shop work up to several hundred tons for shipbuilding and port container handling. Because gantry cranes fall under the same OSHA and ASME safety framework as other overhead lifting equipment, knowing which type you are working with matters just as much as knowing what it can lift.

Key Takeaways

• A gantry crane uses a freestanding A-frame or box-frame structure with legs that roll on wheels or rails, unlike an overhead bridge crane that hangs from a building’s runway system.
• Common configurations include full gantry, semi-gantry, adjustable-height, portable aluminum, motorized steel, and rail-mounted gantry (RMG) systems used at ports and intermodal yards.
• Portable gantry crane capacities typically run from 1,000 pounds to 40,000 pounds, while rail-mounted units at container terminals often exceed 65 tons and can rate well above 100 tons for ship-to-shore work.
• OSHA regulates gantry cranes under 29 CFR 1910.179 for general industry, and ASME B30.2 is the consensus standard most manufacturers and inspectors follow for design, operation, and inspection.
• Frequent inspections occur daily to monthly depending on how hard the crane works, while a documented periodic inspection is required every one to twelve months based on service classification.
• A basic portable aluminum gantry crane starts around $1,500 to $2,500, while a heavy steel motorized rail-mounted system can run into six or seven figures.

What Exactly Is a Gantry Crane?

A gantry crane pairs a hoist-and-trolley system with a horizontal beam supported by two or more legs that rest on the ground, on casters, or on fixed rails. That freestanding structure is what separates it from a standard overhead bridge crane, which depends on a building’s columns or a dedicated runway to bear the load. Because a gantry crane brings its own support system, you can position one in a maintenance bay this month and move it to a different production line the next, without touching the building itself.

Most units share the same core components: a horizontal bridge beam, two supporting legs, a trolley or hoist that travels along the beam, and a base fitted with wheels or rail wheels. Smaller shop units get pushed by hand across a concrete floor. Larger industrial models use electric motors, often running on a 230-volt, 15-amp or 20-amp circuit for the hoist drive, to handle both lifting and horizontal travel. Adjustable-height gantry lines, offered by several manufacturers, let you raise or lower the beam to accommodate different clearance needs, which is useful in facilities that handle mixed-size machinery or vehicles.

What Are the Main Types of Gantry Cranes?

Gantry cranes are generally sorted by frame configuration, mobility, and drive method. The right choice depends on how often the unit needs to move, the capacity required, and whether it operates indoors or in an exposed yard. The categories that matter most for buyers and safety planning are as follows.

• Full gantry cranes have two legs supporting both ends of the bridge beam, giving symmetrical load distribution and stable footing for heavier lifts, typically 2 to 40 tons in industrial settings.
• Semi-gantry cranes support one end of the bridge on a leg and the other end on an existing wall-mounted or elevated runway, which reduces floor space needs and works well where one side of a bay already has structural support.
• Portable aluminum gantry cranes weigh roughly 40 to 60 percent less than comparable steel units, allowing one or two workers to roll them by hand; these typically top out around 4,000 to 10,000 pounds of capacity.
• Adjustable-height gantry cranes feature telescoping legs, useful when a shop handles equipment of varying heights on the same floor space.
• Motorized gantry cranes add powered travel and hoisting, generally worth the added cost once capacity exceeds 2 tons or the span runs past 20 feet.
• Rail-mounted gantry cranes (RMG) run on fixed steel rails and handle high-capacity, long-span lifting at container terminals, steel mills, and rail yards.
• Rubber-tired gantry cranes (RTG) use large rubber tires instead of rails, giving them the freedom to shift between container rows or storage blocks as yard layouts change.

Most shops purchase aluminum or light steel models unless lifting requirements exceed 10 tons, at which point steel construction and motorized drives become the practical standard. Equipment suppliers, including several national depot-style distributors that stock both portable and rigid gantry lines, generally organize their catalogs around these same categories to make capacity and height comparisons straightforward.

Rail-Mounted Gantry Cranes: Where Do They Fit?

A rail-mounted gantry crane is a large-scale, track-guided version of the same freestanding concept, built specifically for container terminals, intermodal rail yards, and bulk material handling sites. Instead of casters, the legs sit on flanged wheels that run along parallel steel rails, which allows the crane to carry far heavier loads (commonly 40 to 65 tons, with some port-side units rated well above 100 tons) while holding precise, repeatable positioning across a long travel path. The tradeoff is flexibility: once the rail bed is installed, the crane’s travel path is fixed, unlike a rubber-tired unit that can reposition freely across a yard.

Port operators favor RMG systems because the fixed rail geometry supports automation, including remote and semi-automated container handling that reduces how many workers need to stand in the crane’s active operating zone. According to the American Association of Port Authorities’ 2026 industry outlook, U.S. container terminals have steadily expanded automated and semi-automated yard equipment over the past several years as cargo throughput climbs, and rail-mounted gantries sit at the center of that shift because fixed rail geometry makes automated positioning far more dependable than a free-roaming rubber-tired crane.

Gantry Crane vs. Overhead Crane vs. Monorail Hoist

A gantry crane stands on its own legs and rolls across the floor or along rails, while an overhead bridge crane’s structure travels along runway beams fixed to the building’s columns or walls well above head height. A monorail hoist, by comparison, is a single trolley-and-hoist unit riding along one fixed overhead beam rather than a full bridge, making it a lower-cost option for a straight-line lift path rather than coverage of an entire work area.

All three fall under the broader category of overhead lifting equipment and share many of the same OSHA and ASME inspection obligations, but the structural differences drive very different installation costs. A gantry crane requires no building modification at all. A monorail hoist needs one straight beam and a handful of supports. A full overhead bridge crane needs runway beams and columns engineered to carry both the crane’s own weight and the rated load, which typically means a structural engineering review before installation. For many small and mid-size shops, a gantry crane becomes the practical middle ground, delivering coverage similar to a bridge crane without the structural investment that a permanent runway system demands.

Where Are Gantry Cranes Used?

Gantry cranes show up wherever a facility needs lifting capability without a permanent overhead structure. Common applications include:

• Maintenance and fabrication shops, where a portable unit lifts engines, gearboxes, or fabricated steel assemblies weighing 500 to 10,000 pounds.
• Precast concrete yards, where heavy steel gantries move molds and finished panels weighing several tons across an open outdoor lot.
• Shipbuilding and heavy fabrication, where fixed rail-mounted units handle hull sections and large steel assemblies rated at 100 tons or more.
• Container terminals and rail yards, where RMG and RTG cranes stack and retrieve intermodal containers around the clock.
• Aerospace and defense facilities, where adjustable-height gantries accommodate irregularly shaped components without a dedicated runway.

Because the equipment spans such a wide range of applications, the operators running it need training matched to the specific unit and load class involved. Facilities that assign staff to this equipment often build out formal training paths for operators assigned to gantry and overhead equipment rather than relying on informal, on-the-job instruction alone.

OSHA and ASME Inspection Requirements for Gantry Cranes

OSHA regulates gantry cranes under 29 CFR 1910.179, the general industry standard covering overhead and gantry cranes, while construction-site lifting work involving cranes falls under 29 CFR 1926, Subpart CC. ASME B30.2, titled Overhead and Gantry Cranes, provides the detailed voluntary consensus standard that most manufacturers, inspectors, and insurance carriers use to fill in the operational specifics that OSHA’s rule references but does not spell out in full detail.

Both standards break inspections into two tiers based on frequency and depth:

1. Initial inspection: performed before a new or altered gantry crane is placed into service, confirming that all functions and safety devices work as designed.
2. Frequent inspection: a visual check of hooks, wire rope or chain, and control functions, conducted daily to monthly depending on how heavily the crane is used, per ASME B30.2’s service classification.
3. Periodic inspection: a documented, more thorough inspection covering structural components, bolts, and electrical systems, required every 1 to 12 months based on whether the crane sees normal, heavy, or severe service.
4. Records retention: OSHA requires that periodic inspection records be kept on file and available for review, typically for the life of the equipment or per company policy, whichever is longer.

Service classification drives most of the variation in inspection frequency. A gantry crane used a few hours per week in a small maintenance bay falls under normal service and needs a periodic inspection roughly once a year. A crane running multiple shifts at a container terminal falls under heavy or severe service, which can push the periodic inspection interval down to as little as one month. Facilities that want a structured reference for this work often turn to the inspection points that matter most for overhead and gantry-style rigs to standardize what gets checked at each interval and to keep documentation consistent across multiple crane units.

According to a 2025 survey published by the Crane Manufacturers Association of America, facilities that follow a documented periodic inspection schedule report measurably fewer unplanned downtime events tied to hoist and wire rope failures compared to those relying on informal checks alone. That gap tends to widen further at facilities running motorized or rail-mounted units, where the consequences of a missed structural crack or worn rail wheel are more severe.

What Do Gantry Cranes Cost?

Pricing spans a wide range because frame material, drive type, and capacity all move the number significantly. The following breakdown reflects typical 2026 U.S. pricing for common configurations:

• Portable aluminum gantry crane (1,000 to 4,000 lb capacity): approximately $1,500 to $4,000.
• Adjustable-height steel gantry crane (2,000 to 10,000 lb capacity): approximately $3,500 to $9,000.
• Motorized steel gantry crane (2 to 10 tons): approximately $15,000 to $60,000, depending on span and hoist type.
• Heavy industrial steel gantry (10 to 40 tons): approximately $75,000 to $250,000.
• Rail-mounted gantry crane systems (40 tons and up): commonly $500,000 to several million dollars, including rail installation, electrical infrastructure, and control systems.

Installation, rail bed preparation, and electrical hookups for motorized units add further cost on top of the base equipment price, and facilities should budget separately for training and periodic inspections rather than treating the purchase price as the final number.

Ready to Put the Right Gantry Crane and Training Program in Place?

Selecting the correct gantry crane type, and keeping it compliant with OSHA and ASME requirements, protects both your workforce and your equipment investment. Certified Safety Experts offers inspection and operator training programs built around the exact standards referenced above, helping facilities across North Carolina document compliance and reduce downtime tied to overlooked inspection items.

Frequently Asked Questions

How much weight can a gantry crane lift?

Capacity ranges from about 500 pounds for small portable shop units to more than 100 tons for rail-mounted port cranes. Most industrial gantry cranes used in maintenance and fabrication settings fall between 1 and 10 tons, while container terminal and shipbuilding applications require the higher end of that range.

Do gantry cranes require OSHA certification for operators?

OSHA does not mandate a specific national certification for gantry crane operators, but it requires that operators be trained and evaluated as competent under 29 CFR 1910.179. Many employers use third-party training programs to document that competency and to standardize skills across multiple operators and shifts.

What is the difference between a full gantry and a semi-gantry crane?

A full gantry crane has legs supporting both ends of the bridge beam, while a semi-gantry crane supports only one end on a leg and rests the other end on an existing runway or wall structure. Semi-gantry configurations save floor space but require an existing structural support on one side of the bay.

How often does a gantry crane need to be inspected?

Frequent visual inspections happen daily to monthly depending on usage, and a documented periodic inspection is required every 1 to 12 months based on service classification. Cranes in heavy or severe service, such as those running multiple shifts at a port, need periodic inspections closer to the one-month end of that range.

Can a gantry crane be used outdoors?

Yes, many gantry cranes, particularly steel rail-mounted and rubber-tired models, are built specifically for outdoor use in yards, ports, and precast concrete lots. Outdoor units typically use weather-resistant coatings and sealed electrical components to handle exposure to rain, temperature swings, and dust.

Conclusion

A gantry crane earns its place in facilities that need flexible, freestanding lifting capability without the cost of a permanent overhead runway. Choosing between full gantry, semi-gantry, portable, adjustable-height, and rail-mounted configurations comes down to capacity, mobility needs, and indoor versus outdoor use. Whatever configuration your facility runs, staying current on OSHA’s 29 CFR 1910.179 requirements and ASME B30.2 inspection intervals keeps the equipment safe and keeps your documentation ready for audit at any time.
